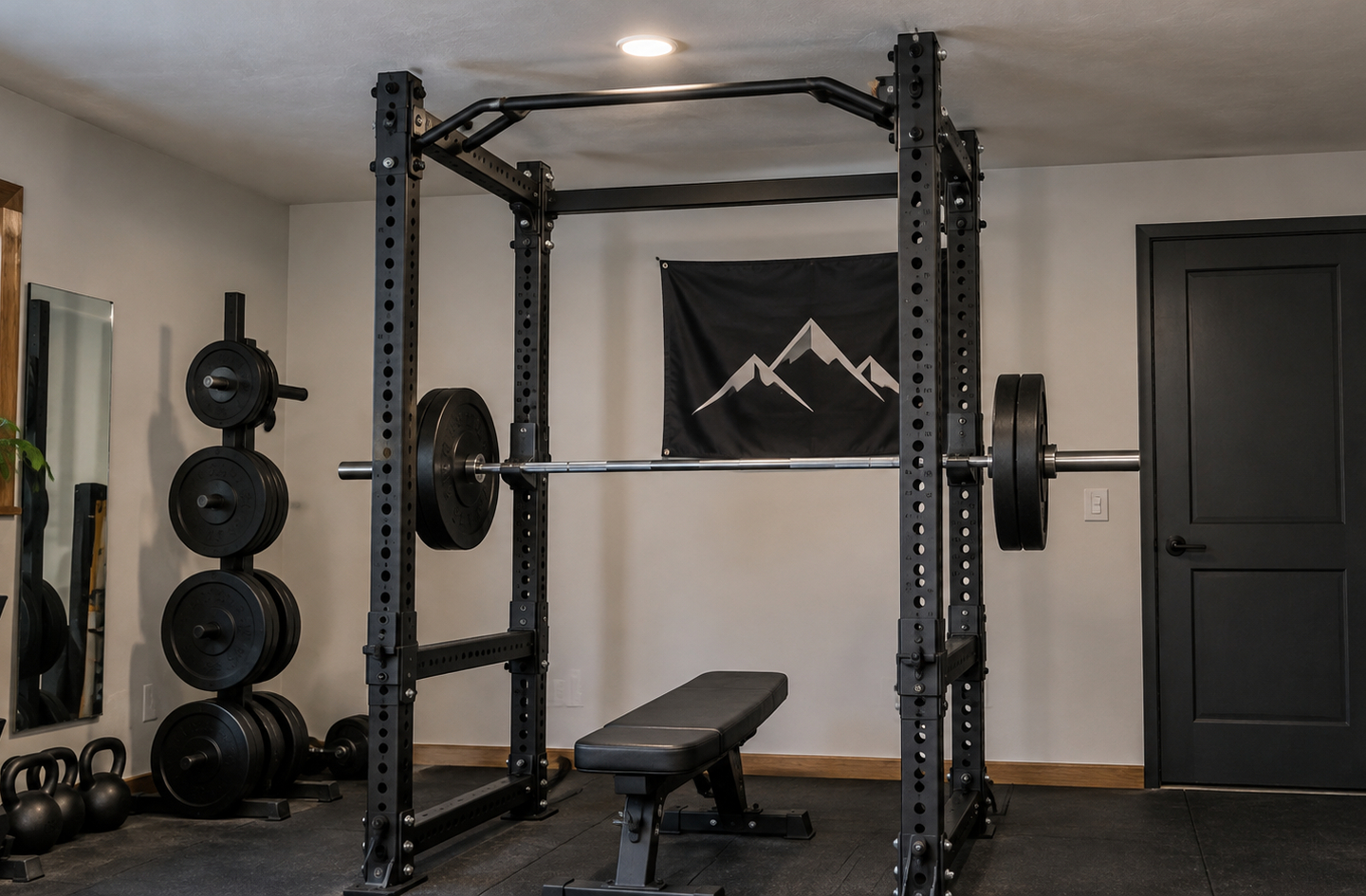

Home gym ceiling clearance is the vertical distance from the training surface to the lowest overhead obstruction at a specific point in the room. That figure determines which equipment fits, which movements are viable, and whether a space will support serious training over the long term. The measurement changes across the room based on beams, HVAC ducts, ceiling fans, light fixtures, and any platform or thick flooring added on top of the subfloor. This complete guide covers measuring usable clearance, evaluating equipment and movement fit, and planning a room that works within its constraints rather than fighting them.
Quick Answer
What is home gym ceiling clearance?
Home gym ceiling clearance is the usable vertical space between the training surface and the lowest overhead obstacle at a given spot in the room. IRC Section R305.1 sets a minimum of 7 feet (84 inches) in habitable rooms,1 but standing overhead press, pull-ups, and jump rope typically require 9 to 10 feet or more depending on the user’s height and the equipment involved. The nominal ceiling height listed on a floor plan rarely matches the usable clearance at every training zone.
Why it matters:
Equipment selected without measuring actual ceiling clearance often cannot be used as intended. A rack that stands 90 inches tall does not fit under a beam at 88 inches. A treadmill that raises a 6-foot user to 74 inches leaves no safe margin near a standard 84-inch joist. Measuring before purchasing prevents those failures.
Key Takeaways
- Usable clearance is floor-to-lowest-obstruction at each training zone, not the nominal ceiling height from a floor plan.
- IRC R305.1 requires a minimum of 7 feet (84 inches) in habitable rooms, but most overhead movements require substantially more.1
- A men’s Olympic barbell is 2.20 meters (86.6 inches) long; when pressed overhead with arms fully extended, it adds roughly 15 to 20 inches above the lifter’s standing reach.2
- Standing overhead press, pull-ups, jump rope, and box jumps are the four movements most frequently blocked by low residential ceilings.
- Sloped ceilings, exposed beams, HVAC ducts, and ceiling fans reduce effective clearance below the stated ceiling height, often by several inches at key training zones.
Home Gym Ceiling Clearance in 30 Seconds
| If you are… | Do this |
|---|---|
| Planning a new home gym from scratch | Measure floor-to-lowest-obstruction at each planned training zone before ordering any equipment |
| Working with 7 to 8 feet of clearance | Focus on cable machines, lat pulldowns, and bench work; remove standing overhead press and freestanding pull-ups from the plan |
| Working with 8 to 9 feet of clearance | Choose a low-profile rack, plan seated overhead variations, and verify pull-up bar height against full standing reach plus headroom margin |
| Buying a treadmill or stair climber | Add the machine’s deck or step elevation to standing height, then compare that total against the ceiling at the exact machine placement |
| Dealing with a sloped or obstructed ceiling | Zone the room: place tall equipment and overhead movements in the highest zone, floor-based work where clearance is lower |
What Is Home Gym Ceiling Clearance?
Ceiling clearance in a home gym is not a single measurement taken once at the tallest point of the room. It is a zone-by-zone assessment: where the rack will stand, where the barbell path travels during an overhead press, where a treadmill sits, where a user jumps rope. Those zones carry different clearances because residential rooms rarely have a uniformly open ceiling above a workable height.
A finished ceiling is only one layer of the vertical picture. Exposed joists, beam flanges, duct runs, sprinkler heads, light fixtures, and ceiling fan blades each define a lower effective ceiling at their horizontal position. A room with a 9-foot finished ceiling can have a usable clearance of 84 inches in the corner where a duct crosses. That 84-inch zone may be exactly where a rack would otherwise fit.
Effective clearance combines five vertical variables: the structural or finished ceiling height at the zone, the depth of any hanging obstruction below it, the height of any platform or thick flooring above the subfloor, the total height of the equipment at its tallest operating point (including a pull-up bar or a raised incline), and the user’s body position at the top of the planned movement. All five interact. A 3/4-inch rubber mat on top of a 4-inch platform removes nearly 5 inches of effective overhead space before the first piece of equipment arrives.
Most residential rooms are specified by nominal ceiling height, which reflects the distance from the subfloor to the drywall above the joists. That figure does not account for flooring, platform, or overhead obstructions. Measuring with a tape measure at each planned equipment and movement zone is the only method that accounts for the actual room geometry.
Why Home Gym Ceiling Clearance Matters
Ceiling clearance is the planning variable most consistently skipped when people build a home gym. A rack arrives, an overhead press begins, and the barbell contacts a joist on the first rep. That outcome is common enough to treat as a predictable failure mode, not bad luck.
ACSM’s Health/Fitness Facility Standards recommend at least 12 feet of clear ceiling height in strength training and exercise areas where overhead movements occur,3 a figure most homes cannot match. The gap between the commercial benchmark and residential reality means home gym planning requires a different approach: not targeting an unattainable ceiling height, but mapping each planned movement to the clearance available and selecting equipment and exercises accordingly.
The practical cost of skipping this step includes unused equipment, structural contact with expensive barbells or rack uprights during failed reps, and the need to rework a setup that was never measured against the room. Three specific planning gaps drive most clearance problems:
- User height and reach at the top of each planned movement (overhead press, pull-up, jump).
- Equipment height at maximum operating configuration, including any attached pull-up bar, J-cup, or bar storage peg.
- Overhead obstructions specific to the zone, including beams, HVAC ducts, ceiling fans, and light fixtures, many of which do not appear on standard floor plans.
Most U.S. homes built under the International Residential Code carry standard 8-foot (96-inch) ceilings in habitable rooms,4 a height that supports bench pressing, cable work, and most floor-based training, but leaves little margin for standing overhead press or freestanding pull-ups without careful equipment selection and movement planning.
The 6-Part Home Gym Ceiling Clearance Framework
Home gym ceiling clearance planning covers six connected dimensions. Each addresses a different part of the vertical space problem, from the first tape measurement to the final exercise modification. The framework covers the full topic in short; the spoke guides go deeper on each specific area.
Measuring and Planning Your Space
The foundation of all clearance decisions is a zone-by-zone measurement, not a single center-of-room reading. Each planned training zone requires a separate floor-to-lowest-obstruction measurement at the exact equipment or movement footprint. In rooms with exposed joists, duct runs, or sloped ceilings, that number changes significantly from one zone to the next. Rooms with attic conversions, bonus rooms, or roofline slopes require mapping the full clearance profile across the floor plan and assigning equipment to zones where the measured height supports both the frame and the planned movement.
Deeper read: measuring usable ceiling clearance.
Deeper read: home gym ceiling height calculator.
Deeper read: home gym under a sloped ceiling.
Strength and Rack Equipment
Power racks, Smith machines, functional trainers, lat pulldown machines, and power towers each carry an installed height that must clear the ceiling before installation. Full-size power racks from major manufacturers typically run 83 to 93 inches in total height,5 which means an 8-foot room with a beam at 90 inches cannot accommodate even a mid-size rack. The pull-up bar at the top of the rack is often the critical dimension, not the frame itself, and its position relative to the ceiling also determines available headroom during the pull-up movement. For every piece of strength equipment, the tallest operating point including all attachments determines the minimum clearance required.
Deeper read: power rack ceiling height.
Deeper read: power racks for low ceilings.
Deeper read: Smith machines for low ceilings.
Deeper read: functional trainers for low ceilings.
Deeper read: lat pulldown machines for low ceilings.
Deeper read: power towers for low ceilings.
Cardio Equipment
Treadmills and stair climbers raise the user above the floor by the height of the belt deck or the step platform, which changes the clearance calculation compared to floor-level equipment. A user who clears the ceiling standing on the floor may not clear it while on a treadmill deck or stair climber step. The elevation effect is most pronounced on stair climbers, where stride position adds meaningful height above the subfloor. At maximum treadmill incline, the front deck rises further, reducing overhead clearance relative to flat-belt operation. The ceiling check for any elevated cardio machine must use user height on the machine at its highest operating position, not standing floor height.
Deeper read: treadmill ceiling height.
Deeper read: stair climber ceiling height.
Overhead Movement Clearance
Pull-ups, overhead presses, gymnastic ring movements, and jump rope all trace a vertical path that must be mapped against the ceiling at the movement location. A pull-up bar requires clearance above the bar for the user’s head at the top of the pull, not just clearance for the bar itself. The overhead press with a men’s Olympic barbell adds the bar length (2.20 meters, 86.6 inches)2 at arm’s length above the lifter’s head, so the ceiling must clear the locked-out arm position plus the bar plus a safety margin. Gymnastic rings require enough strap drop to position them at working height while leaving clearance for the full movement range. Pull-up bar mounting height controls both hang clearance below and headroom above.
Deeper read: overhead press with a low ceiling.
Deeper read: pull-up bar height in a home gym.
Deeper read: gymnastic rings and ceiling height.
Deeper read: pull-up bars for low ceilings.
Plyometric and Dynamic Movements
Box jumps and jump rope both demand more vertical clearance than they appear to require. A jump from a plyometric box adds the box height plus the user’s vertical travel to their standing height. For taller users with a recreational vertical jump, that combined height at the peak often approaches the clearance limit of a standard residential room. Jump rope requires the rope arc to clear the user’s overhead reach on every rotation, adding demands well above the user’s full standing reach. Both movements need their own zone measurement, separate from the rack or bench area.
Deeper read: box jumps in a low-ceiling home gym.
Deeper read: jump rope ceiling height.
Low-Ceiling Home Gym Strategies
A room with under 96 inches of usable clearance at key training zones is not a poor home gym space. It rewards deliberate equipment selection. Cable systems, lat pulldown machines, seated cable rows, and bench-based barbell work often fit rooms where standing overhead press and freestanding pull-ups do not. Seated and kneeling press variations, landmine setups, and floor-based pulling movements cover most programming needs without the ceiling height requirement of standing barbell work. An exercise substitution list built before purchase turns a ceiling constraint into a planning decision rather than a post-purchase problem.
Deeper read: low-ceiling home gym planning.
Deeper read: low-ceiling home gym exercises.
Deeper read: exercise equipment for low ceilings.
How to Choose the Right Clearance Approach
Choosing the right clearance approach starts with one question: what movements is this space expected to support? The answer determines the minimum clearance needed at each zone, which determines whether the room qualifies for those movements or requires substitution. No single clearance number works for every home gym because user height, equipment selection, and planned exercise mix all interact with the specific geometry of the room.
Step 1: Measure usable clearance at each zone. Run a tape from the training surface to the lowest overhead obstruction at the exact footprint of each planned piece of equipment and movement area. Record the measurement for each zone separately.
Step 2: List all planned movements and their minimum clearance requirements. Overhead press, pull-ups, and jump rope are the three highest-demand movements in most home gyms. Box jumps and gymnastics work demand more still.
Step 3: Check equipment height at its tallest operating configuration. The rack at its full height including the pull-up bar, the power tower with the top bar in place, the functional trainer with the top pulley, and the treadmill with the user at maximum incline, all need to be measured against the zone clearance before purchase.
Step 4: Account for user height. A 5-foot-4-inch lifter and a 6-foot-3-inch lifter need fundamentally different clearances for the same exercise. Overhead reach varies with height, grip width, and arm length. Calculate the clearance needed for the tallest user who will train in the space.
Step 5: Add a headroom margin. A minimum 6-inch margin above the bar path or the user’s maximum reach is a common planning threshold. Tighter margins reduce the safety buffer during a missed catch, a bar bounce, or an unexpected body position shift at the top of a movement.
Compare All Home Gym Ceiling Clearance Scenarios
| Criteria | Under 84 in (7 ft) | 84-96 in (7-8 ft) | 96-108 in (8-9 ft) | 108-120 in (9-10 ft) | 120+ in (10+ ft) |
|---|---|---|---|---|---|
| IRC R305.1 compliance | No1 | Yes | Yes | Yes | Yes |
| Standing overhead press | Not viable | Not viable | Marginal (under 5 ft 10 in) | Viable for most users | Fully viable |
| Freestanding pull-ups | Not viable | Limited, adjustable bar | With low bar placement | Yes | Yes, including rings |
| Full-size power rack | Not viable | Not viable | Low-profile only | Mid to full size | Any rack |
| Treadmill (6 ft user) | Not viable | Deck height check required | Generally viable | Comfortable | Comfortable |
| Best approach | Floor work only | Cable, lat pulldown, bench | Modified strength training | Most home gym setups | Full training menu |
Choose Under 84 in if: the space is for floor-based conditioning only, with no intention of adding tall equipment or overhead movements.
Choose 84-96 in if: the room is fixed and the training plan avoids standing overhead work and freestanding pull-ups; cable systems and bench setups serve the full program.
Choose 96-108 in if: the primary plan centers on barbell strength work with a low-profile rack and seated or kneeling overhead variations instead of standing press.
Choose 108-120 in if: the plan includes pull-ups, a mid-size power rack, and standing overhead press work for users under 6 feet 2 inches.
Choose 120+ in if: the full training menu, including standing barbell press, pull-ups, box jumps, and gymnastics work, is the goal without movement modifications.
Deeper read: exercise equipment for low ceilings by type.
Common Ceiling Clearance Mistakes
Mistake 1: Measuring the Center of the Room, Not the Equipment Location
Why it is a mistake: The highest point in a room is rarely where the equipment will sit. A single center measurement misses duct runs, dropped beams, and the specific clearance at each equipment zone.
What to do instead: Measure at each intended equipment footprint and movement zone. Record the floor-to-lowest-obstruction value at that position, not the room average.
Read more: measuring usable ceiling clearance.
Mistake 2: Ignoring the Flooring and Platform Stack
Why it is a mistake: Each layer of rubber mat, platform, or elevated flooring reduces usable ceiling height from below. Combined platform and mat thickness can remove several inches of effective overhead clearance before equipment height is added.
What to do instead: Subtract all platform and flooring thickness from the ceiling measurement at the equipment location before evaluating equipment fit. Include this in the zone measurement from the start, not as an afterthought once equipment has arrived.
Read more: home gym ceiling height calculator.
Mistake 3: Using Standing Floor Height as the Reference for Cardio Equipment
Why it is a mistake: A treadmill deck or stair climber step elevates the user above the floor. A user who clears the ceiling standing on the floor may not clear it on the machine, particularly at maximum incline or at the top of a step cycle.
What to do instead: Add the deck or step height at its highest position to the user’s standing height, then compare that combined figure against the measured ceiling clearance at the exact machine location.
Read more: treadmill ceiling height.
Mistake 4: Buying a Power Rack Before Checking Pull-Up Bar Height
Why it is a mistake: The pull-up bar is the tallest point of a power rack and often the dimension that fails clearance in standard 8-foot rooms. A rack frame that appears to fit may still fail once the integrated pull-up bar height is included.
What to do instead: Check total height including the pull-up bar and any attachments at the top, plus the clearance needed for actual pull-up movement, before purchasing. Confirm against the zone measurement, not the room’s nominal ceiling height.
Read more: power rack ceiling height clearance.
Mistake 5: Treating Nominal Ceiling Height as Usable Clearance
Why it is a mistake: Exposed beams, duct runs, ceiling fans, and light fixtures reduce effective clearance below the stated ceiling height. A basement listed at 9 feet can have usable clearance well below that at key training zones.
What to do instead: Walk the room with a tape measure and find the lowest overhead obstruction at each zone. Use that obstruction as the clearance reference, noting every duct, beam, fan blade, and fixture that crosses a planned zone.
Read more: low-ceiling home gym planning.
Best Ceiling Clearance Approach by Use Case
First-Time Home Gym Builder
The most important action for a first-time home gym builder is to measure before purchasing anything. Clearance in the room determines the equipment and movement menu, not the other way around. A room with 96 inches of usable clearance at the main training zone supports a substantial strength and conditioning setup as long as equipment fits within that envelope. Starting with a zone-by-zone measurement log prevents the most common clearance mistake: equipment that arrives and does not fit.
Deeper read: how to measure usable ceiling clearance.
Garage Gym With Low Beams or Overhead Door Hardware
Garage gyms frequently have overhead obstructions that conflict with standard rack placement. The overhead door track, door opener motor, and structural beams create clearance restrictions that may not be visible until a rack is positioned underneath them. Mapping the full obstruction geometry, including beam positions, track paths, and opener travel, before placing any equipment prevents the most common garage gym clearance failures. Racks near the door end of the garage are most vulnerable to overhead door hardware conflicts.
Deeper read: power rack ceiling height.
Tall User Planning Overhead Movements
Clearance requirements scale with user height, and the calculation changes materially above 6 feet 2 inches. For a 6-foot-4-inch lifter, a standing overhead press with a standard barbell requires close to 10 feet of clearance. Pull-up bar height must account for the taller user’s dead-hang position and the required floor clearance below it. Every movement should be calculated against the tallest user’s standing reach before equipment is selected.
Deeper read: overhead press with a low ceiling.
Basement Setup With Low Joists and Ductwork
Basements often have finished ceiling heights of 7 to 8 feet, with ductwork dropping additional clearance at specific zones. The nominal height can appear workable while actual usable clearance at the equipment location is substantially less. Map the full duct and joist geometry first, mark usable clearance at each potential equipment zone, and build the equipment selection around those measurements rather than the room’s nominal height.
Deeper read: low-ceiling home gym exercises.
Frequently Asked Questions
What ceiling height do you need for a home gym?
Most home gym setups work within 8 to 9 feet (96 to 108 inches) when standing overhead press and pull-ups are excluded. Adding those movements requires 9.5 to 10+ feet for most users. IRC Section R305.1 sets a floor of 7 feet (84 inches) in habitable rooms,1 but that minimum is not a gym-planning target for any overhead movement.
Can you do pull-ups with an 8-foot ceiling?
An 8-foot (96-inch) ceiling can support pull-ups for users under approximately 5 feet 8 inches, provided the bar is positioned so the user can reach a dead hang without touching the floor and the head has at least 6 inches of clearance above the bar. Taller users need a higher ceiling or a kneeling pull-up variation to train safely.
How much ceiling clearance does a barbell overhead press require?
Standing barbell overhead press requires clearance for the user’s full arm extension plus the bar above it. A men’s Olympic barbell is 2.20 meters (86.6 inches) long.2 For a 6-foot user pressing with arms fully extended, the bar position approaches 10 feet (120 inches). Ceilings under that figure limit standing press for taller users at the top of the range of motion.
Does treadmill incline affect how much ceiling clearance you need?
Yes. At maximum incline, the front of the treadmill belt rises, shifting the user’s position higher above the floor by several inches. A user who fits under the ceiling at flat belt may no longer fit at full incline. The ceiling clearance check for a treadmill should use the user’s height on the machine at maximum incline, not the height at zero incline or standing height off the machine.
What home gym equipment fits under a 7-foot ceiling?
Equipment with a frame height under 84 inches and no overhead movement requirement fits a 7-foot ceiling. Lat pulldown machines, adjustable cable systems, flat benches, adjustable dumbbells, rowing machines, and stationary bikes all fit within that envelope. Full-size power racks with integrated pull-up bars and freestanding pull-up towers do not fit under a 7-foot ceiling in most configurations.
What This Hub Does Not Cover
- Structural analysis of specific beams, joists, or anchor points. For any wall-mounted or ceiling-mounted equipment, consult a licensed contractor or structural engineer for the specific installation and material.
- Code compliance certification. IRC and IBC standards are referenced as planning context; this hub does not certify compliance for any specific room or installation.
- Specific product model specifications. Frame heights and deck elevations change with manufacturer updates. Verify dimensions for any specific unit at the time of purchase.
- Commercial gym design. ACSM standards referenced here apply to professional exercise facilities and are used as a planning benchmark, not as a residential code requirement.
References
- International Code Council – IRC 2021, Section R305.1: Minimum ceiling height in habitable rooms (7 feet / 2134 mm)
- International Weightlifting Federation – Technical and Competition Rules and Regulations 2020: Men’s barbell specifications (2.20 meters / 86.6 inches)
- American College of Sports Medicine – Health/Fitness Facility Standards and Guidelines: Ceiling height recommendations for exercise areas
- U.S. Census Bureau – American Housing Survey: Residential ceiling height data in existing U.S. housing stock
- REP Fitness – Power rack product specifications and total installed heights across the product line
Next Read
Home gym ceiling clearance planning begins with a tape measure and ends with a training menu that matches the room’s actual geometry. The measurement at each zone, not the room’s stated height, determines what equipment fits and which movements are viable. Clearance is a fixed constraint; the equipment and exercise selection are the variables that adjust to it.
Follow the step-by-step clearance planning process to work through measurement, equipment selection, and movement assignment for any room.
