Power rack ceiling height is the first measurement to confirm before you order or install a rack. The broader planning context lives in the Home Gym Ceiling Clearance overview; this article focuses on the specific clearances a rack demands. Most full-size racks ship between 79 and 93 inches tall,1 and that number is only the starting point. Pull-up use, overhead pressing, rubber flooring, and cable attachments each layer on additional ceiling demand. Work through each step below before committing to a rack height or a room placement.
Quick Answer
How much ceiling height do you need for a power rack?

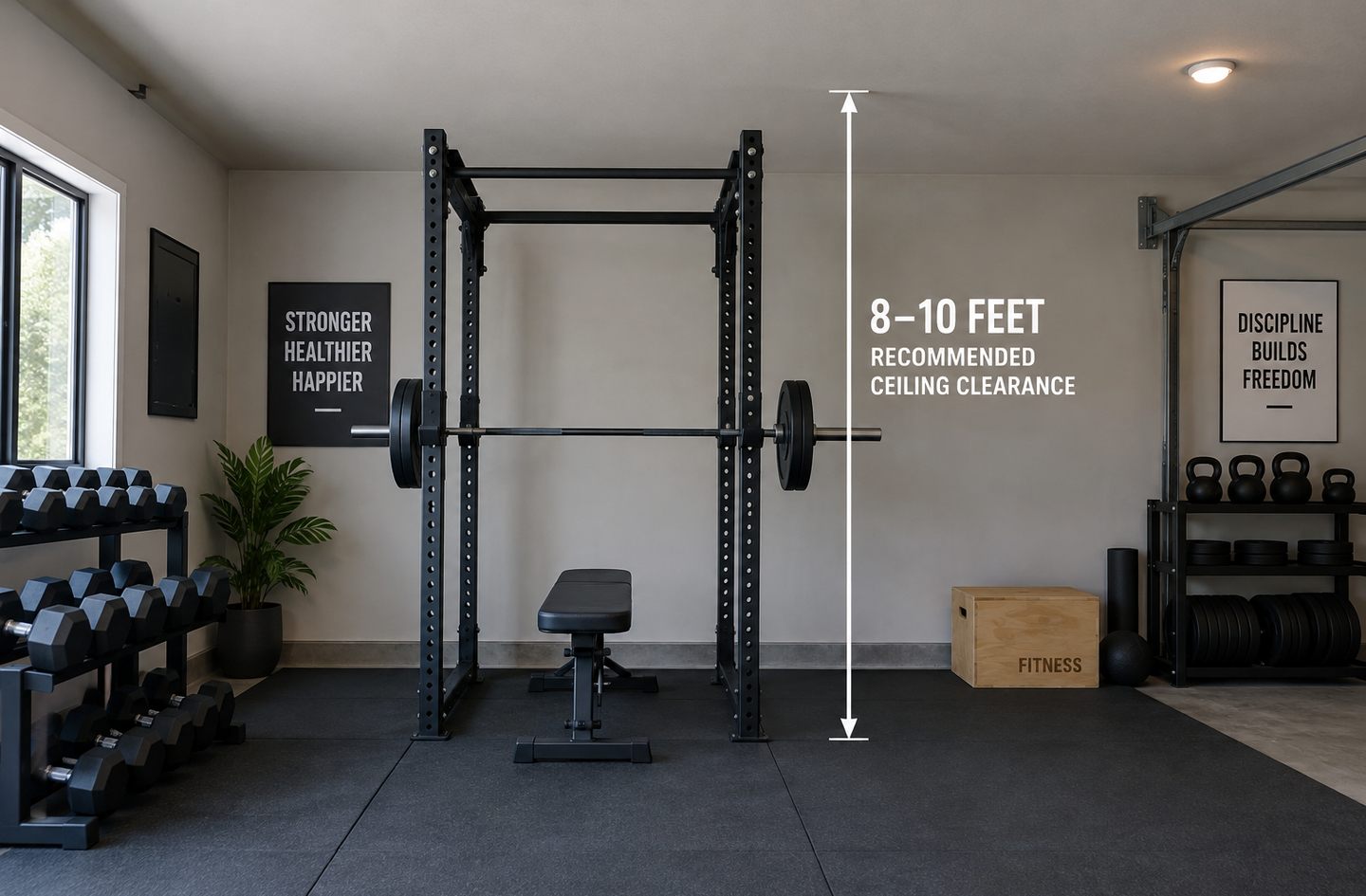

A full-size rack (79-93 inches tall) needs at least 94-111 inches of clear ceiling if you plan to do pull-ups, because the pull-up bar requires 18-20 inches of headroom above it.2 Without pull-ups, the rack’s installed height plus 6-8 inches of safety clearance is the practical floor. Overhead pressing and rubber flooring each add their own adjustments to that base number.
Key Takeaways
- Most full-size racks are 79-93 inches tall. Racks at 90 inches or taller typically require 9-foot ceilings for pull-ups.
- Pull-up bar headroom requires at least 18 inches of space above the bar, pushing the total ceiling demand to 94-111 inches depending on the rack model.
- Standing overhead press ceiling demand depends on the lifter’s height, not the rack height. A 6-foot lifter pressing a loaded Olympic barbell3 needs approximately 99-102 inches of clear ceiling at lockout.
- Rubber stall mats (typically 3/4 inch thick)4 raise the rack’s effective height by that same amount. Measure after mats are installed, not before.

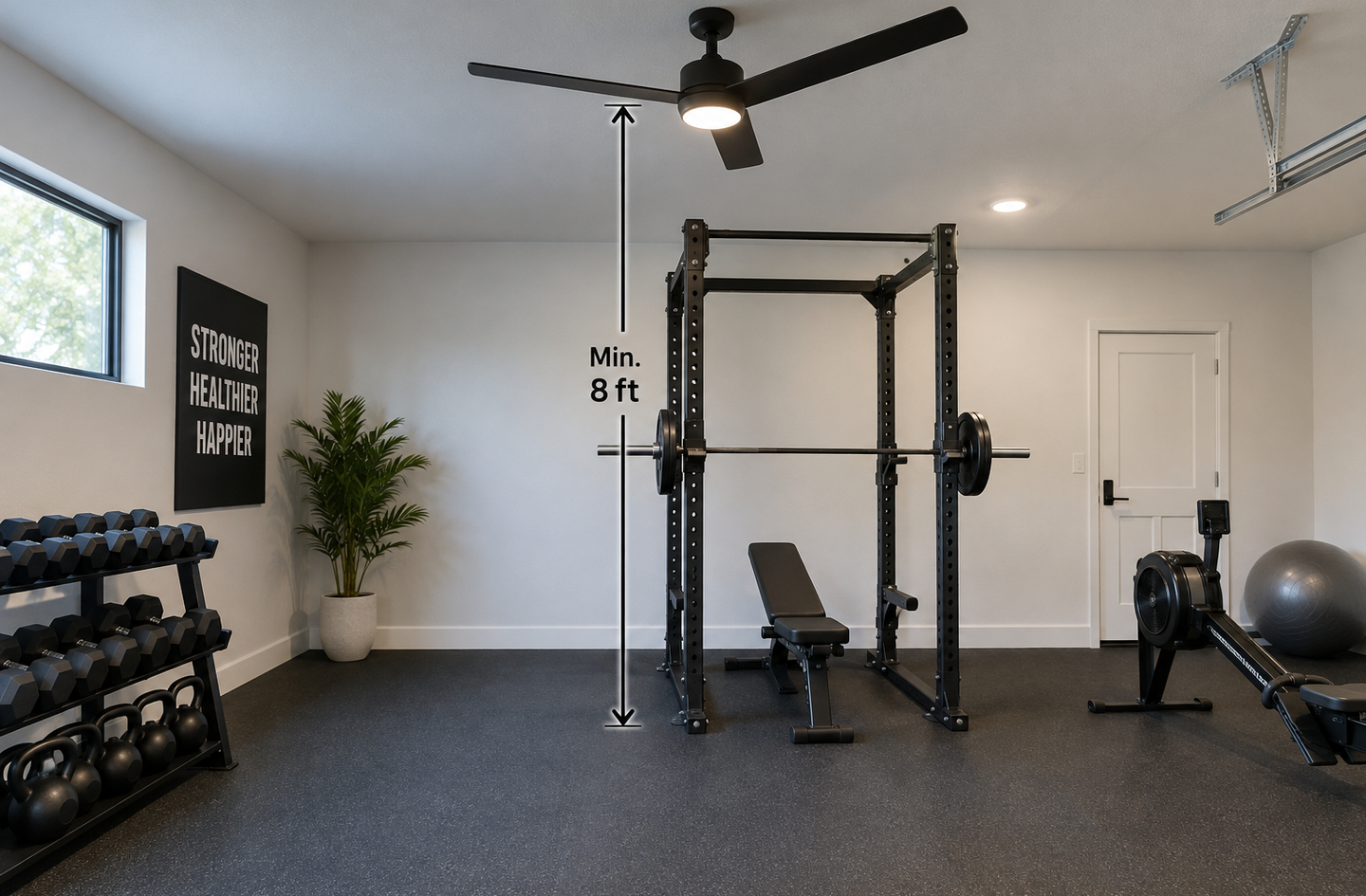

- Beams, HVAC ducts, garage door tracks, and light fixtures set the real usable ceiling height. The drywall surface may sit several inches above the lowest obstruction.
What to Have Ready Before You Measure
The check requires three things: a tape measure, your rack’s specification sheet, and a clear view of every overhead obstruction in the training zone. Dimension sheets from manufacturers list overall frame height and pull-up bar height separately. Note both numbers before anything else.
What to gather before starting:
- Tape measure, 25 feet minimum. Measure floor-to-ceiling at the exact rack footprint, not a nearby open spot.
- Rack specification sheet. Pull the product page for the model you plan to install. Get the overall frame height and the pull-up bar height (these are different numbers on most spec sheets).
- Flooring information. Know whether you’re using rubber mats and their thickness. Mats installed under the rack raise the rack height relative to the ceiling.
- A visual of the ceiling. Note any beams, HVAC ducts, sprinkler heads, ceiling fans, garage door tracks, or light fixtures that hang below the structural deck.
The check takes about 15 minutes once you have these items. The goal is not a rough estimate. You’re comparing exact numbers to decide whether a specific rack, in a specific configuration, clears your ceiling for every activity you plan to do there.
Step 1: Find Your Rack’s Installed Height
By the end of this step, you have two numbers: the rack’s overall frame height and the height of the pull-up bar, both in inches.
Power racks are sold in multiple upright heights. A rack sold as an “80-inch rack” refers to the upright column length. The overall frame height with hardware, crossmembers, and the pull-up bar attachment typically adds 2-6 inches. The Titan T-3, for example, lists an overall height of 82 inches with a max pull-up bar height of 78 inches.5 The bar sits 4 inches below the top of the frame. Always check the “overall height” or “assembled height” field on the spec sheet, not just the upright length.
Height ranges across common rack categories:17
- Compact and entry-level full-size racks: 79-82 inches. The Body-Solid GPR400 sits at 79 inches, designed specifically for rooms where standard full-height racks will not fit.
- Standard home-gym racks: 80-93 inches. REP Fitness PR-4000 and PR-5000 offer 80-inch and 93-inch upright options. Titan T-3 comes in 82-inch and 91-inch versions.
- Tall and commercial-grade configurations: 90-108 inches. Rogue RM-4 and RM-6 ship in 80-, 90-, 100-, and 108-inch options,7 making them among the most height-sensitive racks for residential installations.
If you have not yet chosen a rack, this step also serves as a filter. A 93-inch rack in a basement with 8-foot ceiling joists is an installation problem before it becomes a training problem. Identify the frame height, confirm the pull-up bar height, and write both numbers down before moving to Step 2.
What “height option” means on a product page
Manufacturers often list two height figures: upright length and overall frame height. The upright length is the vertical column. The overall height includes the top crossmember, hardware, and pull-up bar bracket. The difference is typically 2-6 inches. Use the overall frame height for all clearance calculations. If a spec sheet lists only the upright length, add 2-4 inches as a working estimate, then confirm with the manufacturer before ordering.
Step 2: Measure Power Rack Ceiling Height at the Exact Location
By the end of this step, you have the exact usable vertical clearance at the rack’s planned footprint, not the nominal ceiling height of the room.
Nominal ceiling height is the distance from the finished floor to the drywall or plywood deck. Usable clearance is the distance from that same floor to the lowest overhead obstruction inside the rack’s footprint and in the training zone around it. These are frequently different numbers. A basement with 8-foot ceiling joists and 6-inch HVAC ductwork running across the training zone has usable clearance of roughly 90-91 inches at that location, not 96.
How to measure:
- Mark the rack’s footprint on the floor. Use tape or chalk to outline the exact location where the rack will sit, including the area in front of and behind the rack where you load bars and perform exercises.
- Measure floor to ceiling at the rack’s highest point. Stand inside the marked footprint and extend the tape straight up. Note the number at the lowest overhead surface inside that zone.
- Measure at each overhead obstacle. Beams, ducts, door tracks, and fans each create their own clearance limit. Record the lowest measurement. That number is your usable ceiling height for this location.
- Record the number in inches. Convert if needed. An 8-foot ceiling is 96 inches. A 7.5-foot ceiling is 90 inches. A 9-foot ceiling is 108 inches.
“Habitable spaces, hallways, basements with habitable spaces and hallways shall have a minimum ceiling height of no less than 7 feet.”
International Residential Code, Section R305.1, International Code Council6
The IRC’s 7-foot minimum is a code floor, not a planning target.6 A 7-foot room (84 inches) will not work for most full-size rack configurations. You’re looking for enough clearance above the rack’s installed height for every activity planned in that space.
Step 3: Add Flooring Thickness to the Rack Height
By the end of this step, you have the rack’s effective height after flooring is installed, and the adjusted clearance gap above it.
Rubber stall mats are the standard floor covering under a power rack. They are typically 3/4 inch thick.4 A deadlift platform built from two layers of 3/4-inch plywood and a rubber top layer adds 1.5-2.5 inches. Any flooring you place under the rack raises the rack relative to the ceiling by exactly that amount.
The arithmetic:
- Rack frame height (from Step 1) plus flooring thickness equals the effective rack height.
- Usable ceiling height (from Step 2) minus effective rack height equals the clearance gap above the top of the rack.
Example: an 82-inch rack on 3/4-inch rubber mats sits at 82.75 inches effective height. In a room with 96 inches of usable clearance, the gap above the rack top is 96 minus 82.75, which is 13.25 inches. That space holds the pull-up bar bracket, attachment hardware, and any overhead activity above the rack frame.
Do this calculation before choosing a rack height option. A 93-inch rack on 3/4-inch mats reaches 93.75 inches effective. In a 96-inch room, that leaves 2.25 inches above the top crossmember. There is enough space to install the rack, but no room to do pull-ups above it.
Platforms and elevated surfaces
A deadlift platform under the rack adds height the same way rubber mats do. The platform surface, not the concrete below it, is the new “floor” for the rack’s effective height. If you plan to build a platform before installing the rack, measure from the finished top surface of the platform to the ceiling obstruction. That is the clearance the rack and every activity above it must fit within.
Step 4: Check Pull-Up Bar Headroom
By the end of this step, you know whether your ceiling clears the pull-up bar with enough headroom for the tallest person who will use the rack.
Pull-up bar headroom has two parts: the bar’s own height, and the space above the bar during the movement. These are separate numbers and both are required in the calculation.
The bar’s height depends on the rack model. On most full-size racks, the pull-up bar sits 2-6 inches below the overall frame height. The Titan T-3 at 82 inches overall places the bar at 78 inches.5 A rack at 90 inches overall typically positions the bar at 86-88 inches.
The headroom above the bar is the space between the top of your head (or your hands at full hang, whichever is higher) and the ceiling. A working minimum of 18-20 inches of clearance above the bar is enough for most users performing standard pull-ups.2
The full calculation:
- Pull-up bar height (from the manufacturer spec) plus 18-20 inches minimum clearance equals the minimum usable ceiling needed for pull-ups.
- Compare that result to your usable ceiling height from Step 2.
A bar positioned at 78 inches plus 18 inches of headroom means the room needs at least 96 inches of usable ceiling for pull-ups. An 8-foot room with 96 inches of clear height barely clears this. A beam or duct dropping the usable ceiling to 90 inches in that zone makes pull-ups impossible above that rack configuration.
Step 5: Calculate the Overhead Press Ceiling Demand
By the end of this step, you know the ceiling height a standing overhead press requires for the tallest user in the room, separate from the rack height calculation.
The overhead press ceiling demand depends on the lifter’s height, not the rack height. A rack that clears a 5’8″ user for overhead pressing may not clear a 6’2″ user. Run this calculation for the tallest person who will train overhead in that space.
The calculation uses standing reach. Most people can reach approximately 1.33 times their height with arms fully overhead. At full lockout during a press, the bar is at wrist height, a few inches below fingertip reach. Above the bar, add the plate radius: a standard Olympic 45-lb plate has a diameter of 17.5 inches (44.5 cm), per IWF specification,3 placing the top of the plates 8.75 inches above the bar at lockout.
Estimates by lifter height (calculated using the 1.33x standing-reach ratio, not published study data):
| Lifter height | Standing reach (est.) | Bar at lockout (est.) | Top of 45-lb plate | Ceiling needed |
|---|---|---|---|---|
| 5’6″ (66″) | 88″ | 83-85″ | 92-94″ | 96-98″ |
| 5’10” (70″) | 93″ | 88-90″ | 97-99″ | 101-103″ |
| 6’0″ (72″) | 96″ | 90-93″ | 99-102″ | 103-106″ |
| 6’2″ (74″) | 98″ | 93-95″ | 102-104″ | 106-108″ |
Use these figures as planning benchmarks. Actual lockout height varies by arm length, grip width, and pressing technique. A lifter 6 feet tall pressing in an 8-foot room (96 inches usable) is at or beyond the usable ceiling during a standing press. A seated variation, which starts and finishes lower, is often the practical answer in rooms where the standing press math does not work.
Press variations for tight ceilings
A seated overhead press puts the bar at lockout roughly 6-12 inches lower than a standing press because the seated position lowers the starting point. If a standing press will not clear the ceiling, a seated variation often will. Landmine press variations angle the bar’s travel path so the peak height is lower still. The choice between variations should follow the ceiling check, not precede it.
Step 6: Account for Attachments and Loading Clearance
By the end of this step, you have identified whether any planned accessories or loading activity creates a clearance problem the previous steps did not catch.
Several rack attachments extend above the upright height or into the overhead zone:
- Lat pulldown and cable attachments. A lat pulldown bar mounted at the top of the rack runs through a pulley near the top crossmember. The cable and pulley mechanism itself may add 4-8 inches above the frame height. Check the attachment’s installed height on the manufacturer’s spec sheet before adding it to a tight installation.
- High-pin squat variations. A high-bar squat with pins set near the top of the rack puts the loaded bar close to the top crossmember. If the bar is already near the top crossmember, a missed rep that sends the bar upward can contact the rack structure. Confirm pin positions for any variation that loads near the top of the rack.
- Dip bars and tricep attachments. These mount low on the uprights and do not affect the ceiling check.
Loading clearance is a separate concern. When you load a barbell from the floor to the J-cups inside the rack, the bar rises during the swing into position. In a room where the rack top is at 82 inches and the ceiling is at 90 inches, loading a bar in a standard approach is straightforward. In a room where the rack top is at 88 inches and the ceiling is at 90 inches, the bar arc during loading can contact the ceiling if you are not precise. Practice the loading motion in the actual space before considering the installation complete.
J-cup position and ceiling interaction
J-cups set at mid-rack height for squatting or benching do not raise the bar path above the rack frame. The ceiling concern during those lifts is the bar during the unrack and re-rack, when the bar lifts slightly above the J-cup position. In low-ceiling rooms, confirm that a standard unrack angle on squat or bench does not put the loaded barbell above the usable ceiling height. An angled unrack (rather than a straight vertical lift) keeps the bar lower during that phase.
Common Clearance Mistakes
Most clearance problems surface during the first session, not during installation. The rack fits. The bar clips the ceiling on the first overhead press. Or the pull-up attempt ends 6 inches short of lockout. These are avoidable with the checks above, but there are specific errors that cause them repeatedly.
Measuring ceiling height at the wrong location
The most frequent mistake is measuring the ceiling in the center of the room and assuming that number applies everywhere. Beams, ducts, and garage door hardware frequently sit directly over the most logical rack placement. Measure at the rack’s planned footprint, specifically above where the pull-up bar will be. In garage gyms with structural cross-beams, a placement against a load-bearing wall can lose 6-10 inches of usable clearance compared to a placement in the open center.
Using the listed upright length instead of the overall frame height
A rack sold as an “80-inch rack” uses 80-inch uprights. The assembled frame with hardware and pull-up bar brackets may be 82-86 inches overall. Use the “overall height” or “assembled height” figure. If that figure is missing from the spec sheet, contact the manufacturer before ordering. An 82-inch installed height in a 90-inch basement works. An 88-inch installed height in that same room does not.
Skipping the flooring offset
A 3/4-inch rubber mat is small. Its effect on the clearance check is also small, but real. In rooms where the margin is already tight, it closes the gap further. A 93-inch rack on 3/4-inch flooring in a 94-inch room has 0.25 inches above the frame. That is not enough clearance for installation hardware in most designs. Add flooring thickness to the effective rack height before running the check, not after.
Running the rack check without running the press check
A rack may install cleanly and pull-ups may clear. The overhead press check is separate because it depends on the lifter’s height, not the rack height. A person 6 feet tall pressing a standard Olympic barbell3 needs approximately 99-102 inches of usable ceiling at lockout. A room with 96 inches of clearance passes the rack check and may pass the pull-up check for an 80-inch rack. The same room still fails the standing press check for that lifter. Run all three checks independently.
What a Passing Check Looks Like
A clearance check passes when every planned activity clears the usable ceiling with a working margin. The margin needed differs by activity:
| Activity or scenario | Minimum usable ceiling | Notes |
|---|---|---|
| Rack only, no pull-ups, no overhead press | Effective rack height plus 6-8 inches | Safety margin above the top frame for hardware and bar loading. |
| Pull-ups, 80-82″ rack | 94-100 inches | Based on 76-80″ pull-up bar position plus 18″ minimum headroom. |
| Pull-ups, 90-93″ rack | 104-111 inches | Based on 86-91″ bar position plus 18″ minimum headroom. |
| Standing overhead press, lifter 5’6″-5’10” | 96-103 inches | Calculated estimate using 1.33x standing reach plus 8.75″ plate radius. |
| Standing overhead press, lifter 6’0″-6’2″ | 103-108 inches | Calculated estimate. Taller lifters often need seated alternatives in 8-foot rooms. |
A room where the check fails on one activity does not prevent the rack from going in. It means that specific activity is not available in that space. A basement with 90 inches of usable ceiling holds an 80-inch rack for squatting, deadlifting, and bench pressing. Pull-ups and standing overhead press will not work there. Knowing this before the purchase removes the surprise from the first training session.
Frequently Asked Questions
What is the minimum ceiling height for a power rack?
The practical minimum is the rack’s effective height (frame height plus flooring) plus 6-8 inches for hardware and safe bar loading. For an 82-inch rack on 3/4-inch mats, that puts the floor at roughly 90 inches (7 feet 6 inches). That minimum covers squatting, deadlifting, and bench pressing but does not allow pull-ups or standing overhead pressing. The International Residential Code sets a code minimum of 7 feet for habitable spaces,6 which most rack configurations will exceed.
Do I need more ceiling clearance for pull-ups than for squatting?
Yes. Pull-ups require the bar itself plus 18-20 inches of headroom above it.2 Squatting and deadlifting take place well below the rack’s top frame. In a room that easily clears the squat check, pull-ups may add 18-20 inches to the required ceiling height at the pull-up bar position. Check both activities separately because they require different ceiling numbers from the same rack.
How do I check overhead press clearance when the bar rises above the rack frame?
Estimate standing reach at 1.33 times your height. The bar at lockout sits near the wrist, a few inches below fingertip reach. Add 8.75 inches for the plate radius above the bar (based on the 17.5-inch diameter of a standard Olympic plate).3 For a 6-foot lifter, the top of the plates reaches approximately 99-102 inches at lockout. If that number exceeds your usable ceiling, a seated press or landmine variation keeps the bar lower and typically fits the room.
Does rubber flooring affect my ceiling clearance check?
Yes. A standard 3/4-inch rubber stall mat4 raises the rack 0.75 inches relative to the ceiling. In a room with only 2-3 inches of clearance margin, that is meaningful. Add the mat thickness to the rack’s frame height to get the effective height, then compare the effective height to usable ceiling clearance. Do this before finalizing a rack height option, not after installation.
What if my ceiling has beams or ductwork directly above the planned rack spot?
The beam or duct bottom becomes your usable ceiling height at that location. Measure from the floor to the bottom of the obstruction and use that number for the check. If it falls below the clearance the rack and activities require, the rack position needs to shift to a clear zone, or a shorter rack height option is needed. In many garage gyms, moving the rack 1-2 feet to clear a cross-beam recovers enough clearance to change the outcome. Map overhead obstructions before settling on a rack position.
Limitations and Edge Cases
- The overhead press estimates in Step 5 use the 1.33x standing-reach ratio, not published study data. Individual arm-length variation can shift the lockout height by 2-4 inches in either direction. Use the estimates as planning benchmarks and test the actual movement in the space before finalizing the installation.
- The 18-20 inch pull-up bar headroom figure is a practical guideline, not an official safety standard. Taller users or those performing kipping pull-ups may need more clearance. The check should use the tallest user and the most dynamic movement planned.
- This guide covers standard freestanding power racks. Folding racks, half racks, and wall-mounted racks have different geometry and require their own specification checks. For anchored or wall-mounted rack installations, structural evaluation by a qualified professional is a separate and necessary step. Ceiling clearance is one part of that decision.
References
- REP Fitness – PR-4000 Power Rack product specifications, upright height options 80 inches and 93 inches. REP Fitness, 2025.
- Duonamic – “How High Should a Pull-Up Bar Be.” Duonamic, 2024. States 18-20 inches of clearance above the bar as the working minimum for standard pull-ups and chin-ups.
- Torokhtiy Weightlifting – “Olympic Barbell Dimensions Guide,” citing IWF Technical and Competition Rules and Regulations 2024. Men’s Olympic barbell: 220 cm (86.6 in.) length, 20 kg (44 lb), shaft diameter 28 mm.
- Greatmats – “How Thick Should Gym Flooring Be.” Greatmats, 2024. States 3/4-inch to 1-inch rubber mats for heavy weightlifting areas.
- Titan Fitness – T-3 Series Power Rack (82-inch) product specifications. Titan Fitness, 2025. Overall height 82 inches, max pull-up bar height 78 inches.
- Fine Homebuilding – “Minimum Dimensions in the IRC,” January 2024. Cites International Residential Code Section R305.1: minimum ceiling height of 7 feet for habitable spaces and hallways.
- Rogue Fitness – RM-4 Monster Rack 2.0 product specifications. Rogue Fitness, 2025. Upright height options: 80 inches, 90 inches, 100 inches, and 108 inches.
Conclusion
Power rack ceiling height is a stack of checks, not a single number. Frame height, flooring offset, pull-up bar headroom, and overhead press path each add their own ceiling demand. Running all four checks before a rack arrives is faster and cheaper than discovering the problem during the first session. Clearance is equipment: measure before you buy.
