Anchoring gym equipment is the decision that separates a durable home gym from one that gets remodeled months after the first heavy set. The Home Gym Flooring overview covers floor choice and protection broadly; this article focuses on one specific angle: how to secure racks, cable machines, and a pulley system for home gym use so the equipment stays stable and the floor stays intact. Each year, an estimated 564,845 exercise equipment injuries reach U.S. emergency departments1, and many involve equipment that shifted or tipped under load. The right anchoring method depends on your floor type, your equipment weight, and whether the installation can be permanent.
Quick Answer
How do you anchor gym equipment without damaging the floor?
Match the anchoring method to your floor type. On concrete, use wedge or sleeve anchors rated for the equipment’s base-plate load. On wood subfloors, drive lag screws into confirmed joist locations. For renters or finished floors, a weighted rubber platform distributes load and prevents movement without penetrating the surface. In all cases, confirm the floor’s live load capacity before placing heavy equipment, and consult a licensed contractor or structural engineer when the installation is load-bearing or permanent.
Key Takeaways
- IRC 2021 sets the minimum live load for habitable rooms at 40 psf; ASCE 7 classifies gymnasium floors at 100 psf, 2.5 times that figure23.
- A 1/2-inch wedge anchor in 3,000 psi concrete carries a safe working load of roughly 1,025 lb in tension under a standard 4:1 safety factor5.
- Platform systems built from 3/4-inch rubber matting over plywood distribute concentrated foot loads across a larger floor area and are the recommended approach for renters and finished-floor spaces.
- Cable machines and pulley systems generate diagonal pull forces, not just vertical compression, which means the anchor or platform must resist lateral movement in addition to tip-over.
- When an installation is permanent or involves drilling into a structural element, a licensed contractor or structural engineer should review the specific floor system before work begins.
What to Check Before You Anchor Anything
Before choosing a method, gather four pieces of information about your specific floor and equipment. Skipping any one of them leads to either an undersized anchor that fails under load or unnecessary drilling into a floor that could have been protected with a platform.
- Floor material and construction: Is the surface concrete slab, wood subfloor over joists, plywood over concrete, or a finished decorative layer (tile, hardwood, LVP) sitting over one of the above? The structural substrate, not the finish surface, determines which anchor type is viable.
- Equipment weight and footprint: Know the weight of the rack or cable machine at full load (frame weight, weight stack, loaded barbell, and user weight during use). Divide that total by the footprint area in square feet to get your point load in psf. Compare that number to your floor’s rated capacity before you pick an anchor.
- Permanence and tenancy: Owners of the space can choose between permanent anchors and platform systems. Renters should default to platform systems, as drilling into a slab or joist almost always voids lease agreements and requires restoration on move-out.
- Lateral force direction: Barbells and dumbbells create mostly vertical compressive loads. Cable machines and pulley systems create diagonal and lateral forces during use (think of a cable row pulling the unit toward you). The anchor must resist tip-over and lateral slide, not just hold the unit from sinking.
These four inputs shape every downstream decision. Establishing them takes fifteen minutes and prevents rework that takes far longer.
Step 1: Identify Your Floor Type and Its Live Load Capacity
The floor’s rated live load determines how much weight the surface can safely carry. That number is set by building code and by the specific floor joist or slab design. Adding rubber matting does not raise it, and it is not the same as the concentrated point load your rack feet will apply.
The International Residential Code (IRC 2021, Table R301.5) sets the minimum uniform live load for habitable rooms at 40 pounds per square foot (psf), and requires that floor systems also support a concentrated load of at least 300 pounds on any 6-inch-square area2. Those are minimums. A floor built to exactly those minimums is not designed with a home gym in mind.
Here is the practical math: a mid-range power rack weighs roughly 200 to 300 lb bare, the frame weight alone. Add a 45 lb barbell, 200 lb in plates, and a 185 lb lifter standing at the top of the movement, and the total weight on the rack’s footprint during a loaded squat can reach 630 lb or more. Distributed across a typical 4-by-4-foot rack footprint (16 sq ft), that is approximately 39 to 40 psf, right at the IRC minimum and before any dynamic impact loading from a missed rep or a dropped set. A floor designed to the bare code minimum has little margin for a home gym under real training conditions.
The American Society of Civil Engineers’ ASCE 7 standard classifies gymnasium and fitness-use floors at 100 psf, 2.5 times the residential habitable room minimum3. That gap tells you something important: a residential floor and a purpose-built gym floor are structurally different categories. Your floor may handle a home gym without issue, but the question is worth asking before you anchor anything heavy to it. If you have access to your home’s original construction drawings, check the joist span, depth, and spacing. If you do not, and the installation is load-bearing and permanent, a structural engineer can assess the specific system.
| Floor Type | Viable Anchoring Options | Key Considerations |
|---|---|---|
| Concrete slab (on grade or suspended) | Wedge anchor, sleeve anchor, epoxy anchor | Permanent; confirm slab thickness before drilling; professional review recommended for first install |
| Wood subfloor over joists | Lag screw through subfloor into joist | Must confirm joist location with stud finder or drill probe; thread engagement depth is critical |
| Plywood or OSB over concrete | Platform system; lag screw into framing above if present | Platform preferred; avoids drilling through two layers into uncertain slab |
| Finished wood, LVP, or tile over joists | Platform system; avoid direct anchor through the finish layer | Surface layer is not structural; anchors through it into joists risk delamination and visible damage |
| Tile over concrete | Platform system; anchor only after tile removal at that point | Tile shatters under drilling force; use masking and a tile bit or remove tile from the target zone first |
Once you know your floor type, the anchoring options narrow quickly. The table above is a starting point, not a final engineering judgment. When in doubt, a licensed contractor can probe the floor structure in under an hour and give you a clear answer for your specific situation.
Step 2: Match the Anchoring Method to Your Floor
There are three anchoring strategies: permanent mechanical anchors into the structural substrate, platform systems that distribute load without penetrating the floor, and hybrid approaches that use both. The right choice depends on the floor type from Step 1, the permanence of the installation, and whether the equipment generates primarily vertical or lateral forces.
ASTM F2276-23 requires fitness equipment to address stability, support, and structural integrity under maximum rated load, including dynamic user forces7. That standard is written for manufacturers, but the same logic applies to installation: a cable machine must be stable under actual training forces, not just its static weight.
Platform systems are appropriate when: the floor is finished, leased, or of uncertain structural capacity; the equipment is not rated for anchoring at the base plate; or the installation must remain fully reversible. Bolt-down anchors are appropriate when: the floor is concrete slab or confirmed wood joist, the equipment will be permanent, and the combined load in the worst-case training scenario has been assessed. In all cases, the anchor or platform must address both vertical load and the lateral forces generated by cable pulls and loaded unracking movements.
Step 3: Use a Platform for Damage-Free Stabilization
A platform system spreads concentrated load from rack feet or machine base plates across a larger floor area, using friction and mass to resist lateral movement without drilling into the substrate. Done correctly, a platform holds a fully loaded power rack in place during heavy training with no mechanical fastener penetrating the floor.
Platform Materials and Build Logic
The most reliable home gym platform starts with a 3/4-inch rubber mat or stall mat layer directly on the floor, followed by one or two sheets of 3/4-inch plywood, then a top rubber layer where the equipment contacts the platform. The rubber-plywood-rubber sandwich achieves three things: the bottom rubber grips the floor and cushions point loads; the plywood layer distributes those loads laterally across the mat’s area; and the top rubber grips the equipment base plates and protects the wood surface. A common single-rack platform is 8 feet by 8 feet, giving 64 square feet of load distribution, which reduces the effective psf on any part of the floor significantly compared to a rack sitting on four small feet with no mat underneath.
Mass-Loading for Cable Machines
A cable machine on a platform benefits from additional mass loading: placing the machine’s weight stack at full load and positioning the unit so its heaviest components sit low and toward the center of the platform shifts the center of gravity down, making it harder for lateral cable pulls to tip or slide the unit. Some standalone cable machines include provisions for bolting a base frame to a platform (often with 1/2-inch bolts through the base plate into the plywood layer). This bolt-to-platform approach does not penetrate the structural floor but still mechanically locks the machine to the platform mass, which can be substantial if the platform is built from two 3/4-inch plywood layers plus rubber matting across an 8-by-8-foot area.
When a Platform Is Not Enough
Platform systems have real limits. A very narrow-footprint machine (some functional trainers have a footprint under 3 square feet) on a heavy cable pull will generate enough lateral moment to slide or rock even a substantial platform unless the platform is very heavy or the machine is bolted to it. If your machine’s manufacturer does not provide a bolt-to-platform option and the unit is narrow, a permanent anchor into the floor is the more appropriate solution. Similarly, platforms built from a single 1/2-inch plywood layer over a standard rubber mat provide less lateral resistance than the rubber-plywood-rubber build described above; go thicker on the materials when the equipment is heavy or the cable loads are high.
Step 4: Install Bolt-Down Anchors on Concrete or Wood Subfloors
Bolt-down anchoring is the most secure approach for permanent home gym installations on concrete slabs and wood subfloors. The anchor type, diameter, embedment depth, and spacing are set by the expected load, the substrate material, and the equipment manufacturer’s base-plate specification. Getting those inputs right before drilling is what separates a well-anchored rack from a failed anchor that shears under load.
Concrete Anchors: Types and Capacities
For concrete slabs, the three most common mechanical anchor types used in residential installations are wedge anchors, sleeve anchors, and drop-in anchors. Wedge anchors are the most widely used for gym equipment because they develop high tension and shear values with straightforward installation. Under ICC-ES evaluation report data and ACI 318-19, a 1/2-inch diameter wedge anchor with a 3-3/4-inch embedment depth in 3,000 psi concrete has an ultimate tension load of roughly 4,100 pounds; applying the standard 4:1 safety factor yields a safe working load of approximately 1,025 pounds in tension per anchor5. Most power racks specify four base-plate anchor points, which at 1,025 lb each gives more than 4,000 lb of combined anchored capacity – well above the real-world loading from a loaded barbell and user. Slab thickness matters: most residential concrete slabs are 4 to 6 inches thick, and an anchor requiring 3-3/4-inch minimum embedment needs at least 4 inches of sound concrete below it. Probe or verify slab thickness before specifying anchor length, and confirm the slab is not a thin decorative topping over a substrate.
Wood Subfloor Anchors: Lag Screws Into Joists
On wood subfloors, the anchor of choice is a structural lag screw driven through the subfloor and into the floor joist below. The American Wood Council’s National Design Specification (NDS 2018) provides a reference withdrawal design value for lag screws that depends on the wood species specific gravity and the screw diameter4. For a 1/2-inch lag screw in Southern Yellow Pine (specific gravity 0.55, one of the most common structural species in U.S. residential framing), the NDS formula yields approximately 176 pounds of withdrawal resistance per inch of thread penetration into the main member. With 4 inches of thread engagement into a joist, that gives roughly 704 lb of withdrawal resistance per anchor. The critical variables are confirming you are hitting a joist (not just the subfloor), achieving the full thread engagement depth, and pre-drilling a 5/16-inch pilot hole to avoid splitting the joist. Confirm joist location with a stud finder and a probe hole before committing, then drive the lag screw through the rack base plate and subfloor into the joist at full engagement.
“Designing for residential 40 psf vs. 50 psf won’t impact the design too much. But, designing for 100 psf or more might make a noticeable difference.”
David A. Topete, SE, GFD Structural Engineers
That observation from a licensed structural engineer captures the real design gap between residential and gymnasium-rated floors. A home gym installation that stays within the 40-to-50 psf range on a well-built residential floor is unlikely to require structural reinforcement. An installation pushing toward the 100 psf gymnasium classification might. If your setup is heavy enough that the question is live, bring in a structural engineer to assess the specific floor system before drilling. That is the professional handoff this decision warrants.

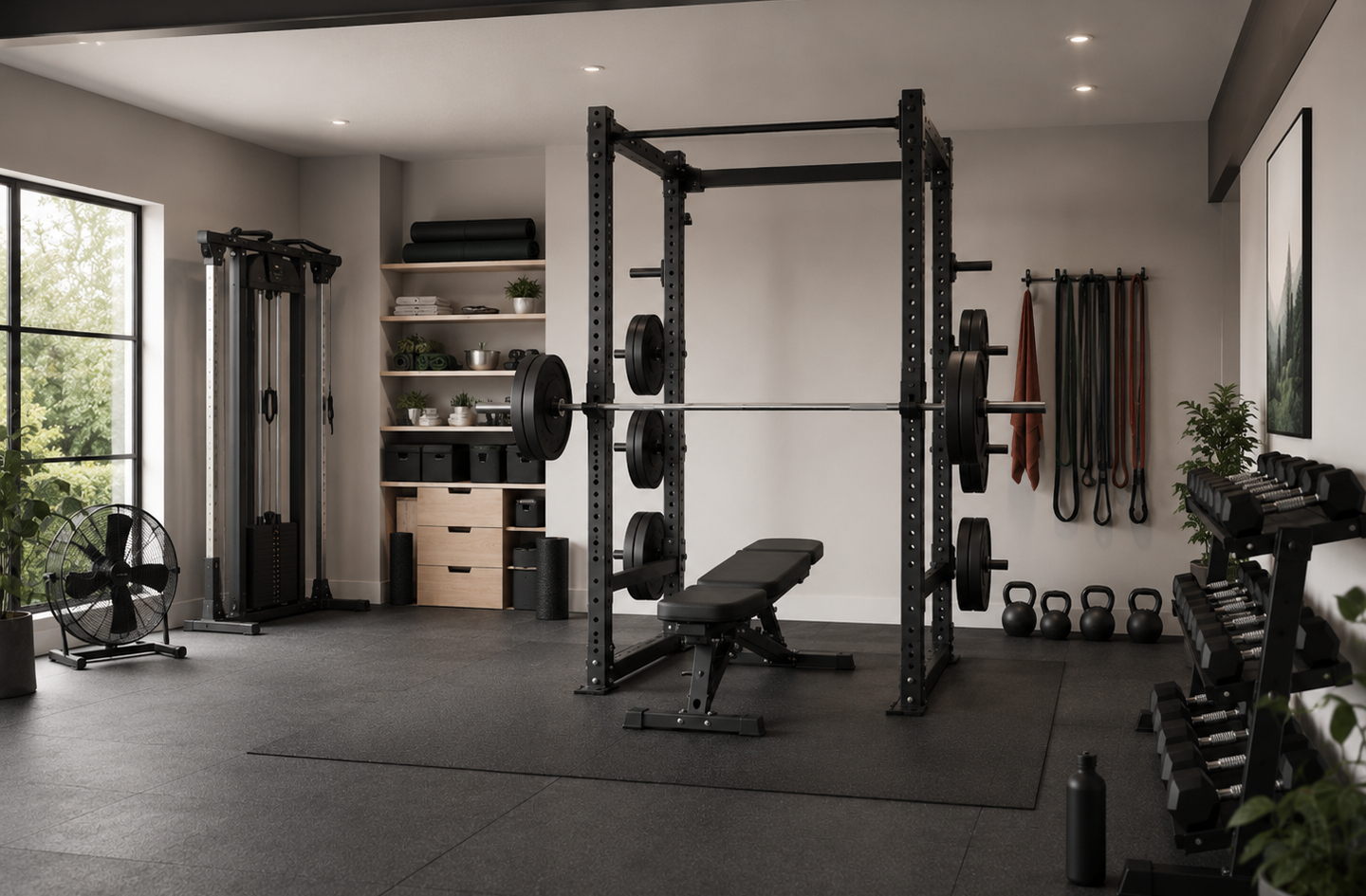

Step 5: Position and Anchor a Pulley System for Home Gym Use
A cable machine or pulley system for home gym use presents a different anchoring problem than a squat rack. A squat rack loaded with a barbell creates primarily vertical compressive forces on the floor: the lifter is standing inside the rack, and the load path goes straight down through the rack uprights. A cable machine generates diagonal and lateral forces. When you perform a cable row, you pull the handle toward you. That pull transfers through the cable, over the pulley, and down into the machine frame, which tries to tip or slide toward you. The anchor or platform must resist that lateral moment, not just prevent the unit from sinking through the floor.
ASTM F3101-21a, the standard for outdoor fitness equipment, explicitly states that fitness products used in an unsupervised setting “will be permanently anchored”6. While that standard addresses outdoor commercial installations rather than residential home gyms, the physics it reflects apply equally indoors: a cable machine that can be pulled across the floor by a 200 lb cable row is not anchored to a useful standard.
Positioning the Unit Before Anchoring
Before anchoring, position the cable machine where it will remain permanently, and then test all planned cable paths (high-pulley, low-pulley, mid-point) at the loads you intend to use. Check that the unit does not rock or tip at any point in the movement. Check walking paths around the unit at all cable extension lengths. Check that the weight stack moves freely and does not contact the cable housing at any stack position. Only after confirming that all of those things work in the chosen position should you mark the anchor or platform footprint on the floor. Moving a cable machine after the anchors are in is a repair job, not a correction.
Anchor Point Placement for Cable Machines
Most standalone cable machines have base-plate holes at the front and rear of the frame. If the machine manual specifies anchor bolt diameter and embedment, follow that specification exactly – it reflects the manufacturer’s load analysis for the frame under rated cable tension. If the manual does not specify anchor requirements, use the minimum floor anchor specification for a machine of its weight class: 1/2-inch diameter wedge anchors (concrete) or 1/2-inch lag screws into confirmed joists (wood), at all four base-plate points. Anchor the rear of the machine first: the rear anchors resist the tip-over force when you pull on the high pulley. Anchor the front second: front anchors resist the slide force when you pull on the low pulley. If the machine has only two base-plate holes, anchor diagonally to address both tip-over and slide in both directions.
Cable Machines on a Platform
If a permanent anchor is not viable, a cable machine on a platform can be effective if the platform is large enough and heavy enough relative to the machine’s cable tension. The common failure mode is a platform that is smaller than the machine’s effective torque arm: a cable pull at waist height on a machine that is 24 inches front to back creates a tipping moment that a platform only 24 inches deep will not resist without mass or bolt-to-platform fastening. Extend the platform at least 18 inches in front of the machine’s front base to give the platform’s weight a moment arm that counters the cable pull direction. Bolt the machine’s base plate to the platform if the manufacturer provides that option. If neither is possible for a lightweight or narrow machine, a permanent floor anchor is the correct solution.
Common Mistakes to Avoid
Most anchoring failures in home gyms trace to one of four patterns. None of them require specialized knowledge to avoid; they require asking the right questions before drilling or assembling.
Anchoring Into the Subfloor Without Hitting a Joist
The subfloor in a wood-framed home is typically 3/4-inch plywood or OSB. A lag screw driven into the subfloor alone has almost no withdrawal resistance; the wood panel will simply pull through. Every anchor must penetrate through the subfloor and engage the joist below it. Joist locations vary by house; they are not always on 16-inch centers, and a stud finder reading is not always precise. The fix: after marking the joist location, drive a finish nail at the suspected center. If it hits solid wood at 1-1/2 inches, you have the joist; if it punches through into a cavity, move the anchor point until it lands on solid material.
Using Concrete Anchors That Are Too Short for the Slab
A wedge anchor requires a minimum embedment depth to develop its rated load. Driving a 2-inch anchor into a 4-inch slab looks fine from the surface but delivers a fraction of the anchor’s rated tension capacity. Many residential slabs have a vapor barrier or isolation layer below the concrete; the anchor hole may penetrate through the slab into nothing. The fix: determine the slab’s net concrete thickness before specifying anchor length, and select an anchor whose required embedment depth is at least 1/2 inch less than the slab’s net thickness. When slab thickness is unknown, a hole probe (a nail driven into the anchor hole) quickly tells you how deep the concrete runs before the underlying material changes.
Using a Platform That Is Too Small for the Equipment’s Moment Arm
A platform that exactly matches the machine’s footprint provides friction resistance against sliding but almost no moment resistance against tip-over. A cable machine pulling at chest height generates a tipping moment that needs a counter-weight at a distance. A platform that extends only 6 inches in front of the machine’s front base plate provides a very short lever arm for that counter-weight. The fix: size the platform to extend at least 18 inches beyond the leading edge of the machine in the primary pull direction, and ensure the platform is heavy enough (materials plus any added mass) to resist the maximum cable tension you will use in training.
Skipping the Floor Load Check Before Equipment Placement
A rack that fits in the space is not the same as a rack the floor can safely carry. A point load of 600 to 800 lb between joists at midspan can produce deflection that loosens subfloor fasteners and, in extreme cases, stresses the joist itself. The fix: identify where the floor joists run and position the rack so its foot loads land directly over joists, not between them. That single positioning choice significantly reduces the load on any one joist.
Frequently Asked Questions
Does a power rack need to be bolted to the floor?
Not always. A rack with a wide, heavy footprint on a rubber platform may be stable enough for most training without mechanical fasteners, particularly for squat, bench, and deadlift work where the forces are primarily vertical. Racks used for heavy cable work, or narrow-footprint racks on smooth concrete, should be anchored. ASTM F2276-23 requires equipment to demonstrate structural integrity under maximum rated load, which includes dynamic and lateral forces during use7. If the rack rocks, slides, or tips at the loads you train with, it needs an anchor or a heavier platform.
What is the best anchor for a cable machine on a concrete floor?
A 1/2-inch diameter wedge anchor is the most common and practical choice for residential concrete slabs. At 3-3/4-inch embedment in 3,000 psi concrete, a single wedge anchor carries a safe working load of roughly 1,025 lb in tension under a 4:1 safety factor5. Install anchors at all four base-plate points if the machine provides them, prioritizing the rear anchors that resist tip-over under high-pulley cable loads. Confirm slab thickness before selecting anchor length; an anchor shorter than the slab depth minus 1/2 inch is undersized.
Can I anchor gym equipment to a wood subfloor without hiring a contractor?
For straightforward installations, yes: lag screws into confirmed joist locations are a manageable DIY task. The National Design Specification (NDS 2018) gives roughly 176 lb of withdrawal resistance per inch of thread penetration for a 1/2-inch lag in Southern Yellow Pine4. The critical step is confirming joist location before drilling. If you are uncertain about joist location, slab thickness, or the floor’s load-carrying capacity under the planned equipment weight, bring in a licensed contractor. The cost of a one-hour assessment is far lower than the cost of repairing a failed anchor or damaged joist.
How do I secure gym equipment in a rented space without damaging the floor?
A rubber-plywood-rubber platform system is the standard answer for renters. A 3/4-inch rubber mat base, one or two layers of 3/4-inch plywood, and a top rubber layer under the equipment distributes load and provides friction resistance against lateral sliding without any fasteners penetrating the floor. For cable machines, bolt the machine base to the platform (not the floor), extend the platform at least 18 inches in front of the unit’s leading edge, and use the machine’s full weight stack as added mass. Remove all components cleanly on move-out with no trace left in the floor surface.
What floor live load does a home gym need to be designed for?
IRC 2021 sets the minimum for habitable rooms at 40 psf, with a required concentrated load capacity of 300 lb on any 6-inch-square area2. ASCE 7 classifies gymnasium floors at 100 psf3. A loaded power rack can approach 40 psf on a 16 sq ft footprint before dynamic loads are included. If your planned setup pushes the floor toward or above the IRC minimum, consult a structural engineer to evaluate whether the specific floor system can carry the load, or redistribute the equipment load by repositioning over joists.
References
- National Safety Council – Sports and Recreational Injuries, Injury Facts (NEISS/CPSC data), 2025 (reporting 2024 data).
- International Code Council – IRC 2021 Table R301.5, Minimum Uniformly Distributed Live Loads and Minimum Concentrated Live Loads, 2021.
- American Society of Civil Engineers – ASCE 7 Table 4.3-1, Minimum Uniformly Distributed Live Loads by Occupancy (current in ASCE 7-22).
- American Wood Council – National Design Specification (NDS) for Wood Construction 2018, Chapter 12 Dowel-Type Fasteners, lag screw withdrawal reference design values.
- BuildToolHQ – How Much Weight Can Concrete Anchors Hold, citing ACI 318-19 and ICC-ES evaluation report data, 2024.
- ASTM International – F3101-21a Standard Specification for Unsupervised Public Use Outdoor Fitness Equipment, active standard, 2021.
- ASTM International – F2276-23 Standard Specification for Fitness Equipment, addressing stability, support, and structural integrity under maximum rated load, active standard, 2023.
Conclusion
Anchoring gym equipment without damaging the floor is an engineering-informed decision, not a hardware choice. The floor type determines the viable anchor. The equipment’s force direction (vertical for racks, lateral for cable machines) determines what the anchor or platform must resist. And the floor’s live load capacity, compared against the real combined weight of equipment and user under load, determines whether the structural system needs a professional review before anything goes in. Get those three inputs right, and the anchor hardware is straightforward. Skip them, and the most expensive wedge anchor available will not save a floor that was not ready for the load it is now carrying.
