Most workout rooms fail at the layout stage before the first session begins. Equipment lands where it fits, not where training needs it. A planned workout room layout works differently: it maps the order of your actual training session (mobility first, strength at the center, cardio downstream, and storage adjacent to each) and builds the room around that sequence. The Health & Fitness Association reported that 77 million Americans belonged to a gym or fitness facility in 2024, a 20% increase from 2019.1 Many are now replicating that training environment at home. See the overview in Home Gym Layout for how zone planning connects to the broader room-readiness decisions that precede any equipment purchase.
Quick Answer
How should you organize a workout room layout?
Arrange zones in the order you train: place the mobility and warm-up area near the room entry, the strength zone as the central anchor, the cardio zone downstream from the rack, and storage adjacent to each station. The National Strength and Conditioning Association recommends at least 36 inches of clear walkway around resistance equipment and 40 to 60 square feet per user for a dedicated stretching and mobility area.3
Key Takeaways
- Map your actual training sequence on paper before positioning any equipment. Zone order in the room should match the order you train: warm-up, strength, accessory work, cardio, cool-down.
- The strength zone (rack, bench, platform) is the heaviest and least movable anchor. Place it first, then arrange every other zone around it.
- Mobility and warm-up space requires 40 to 60 square feet per user, per NSCA guidelines – as much floor area as a treadmill footprint. Most home gyms under-allocate this zone.
- Storage belongs adjacent to the zone it serves. Plates and collars store at the rack; foam rollers and bands store at the mobility mat; cardio accessories stay beside the machine.
- A minimum 36-inch clear walkway between zones prevents the layout from forcing unsafe detours during plate loading and equipment transitions.
Step 1: Map Your Workout Order Before Moving Anything
By the end of this step, you will have a written sequence of what you actually do in a session and a rough zone sketch that places each phase in the physical location where it belongs in the room.
Most home gym layout problems trace back to one root cause: the room was arranged around what fit, not around what trains. A rack went in the corner with the most open floor. The treadmill went where the outlet was. The mats got the leftover space. The result is a room that works against the session instead of supporting it.
Zone placement should follow training flow. Before you move a single piece of equipment, write down your session in order:
- Warm-up and mobility: Foam rolling, dynamic stretching, banded activation. This happens first, so the mobility zone belongs nearest the room entry.
- Primary strength work: Squats, deadlifts, bench press, overhead press. This is the strength zone, the heaviest phase, and the room’s anchor.
- Accessory and supplemental work: Dumbbell movements, rows, single-leg work. These typically happen within the strength zone footprint.
- Cardio or conditioning: If cardio follows strength, the cardio zone belongs downstream from the rack, not between you and it.
- Cool-down: Stretching and rolling. This returns to the mobility mat, so the warm-up zone and the cool-down zone are the same space.
Write this down. Then draw a rectangle for your room and mark zones in training order: entry side for mobility, center for strength, a distinct area for cardio. This is a sequence map, not a floor plan. The floor plan comes after you know what order the room needs to support.
Why sequence-first planning differs from equipment-first planning
Equipment-first planning starts with dimensions: the rack is 48 inches wide, the treadmill is 30 by 70 inches, and they fit wherever the math allows. Sequence-first planning starts with transitions: after your last squat set, can you walk to the dumbbell rack without routing around the treadmill? After pull-ups, can you reach the foam roller without stepping over a cable? The room should support the movement patterns of the session, not force the session to navigate the room.
A sequence-matched workout room layout means fewer friction points between stations, cleaner loading paths, and a room that makes training repeatable. Equipment-first layouts are rearranged after months of use, once the friction becomes obvious. Sequence-first layouts surface those decisions on paper before anything is moved.
Fixed constraints to note before sketching zones
Before converting the sequence map into a floor plan, record fixed constraints: electrical outlet locations (cardio equipment cannot cross a room with a power cable), door swing direction (no zone should block an exit path), low ceiling beams, and any wall sections that may not carry anchor load. If a ceiling beam or low clearance limits overhead height, the strength zone stays out from under it. Overhead press and pull-up paths require full standing height plus a margin above the bar at the top of each lift.

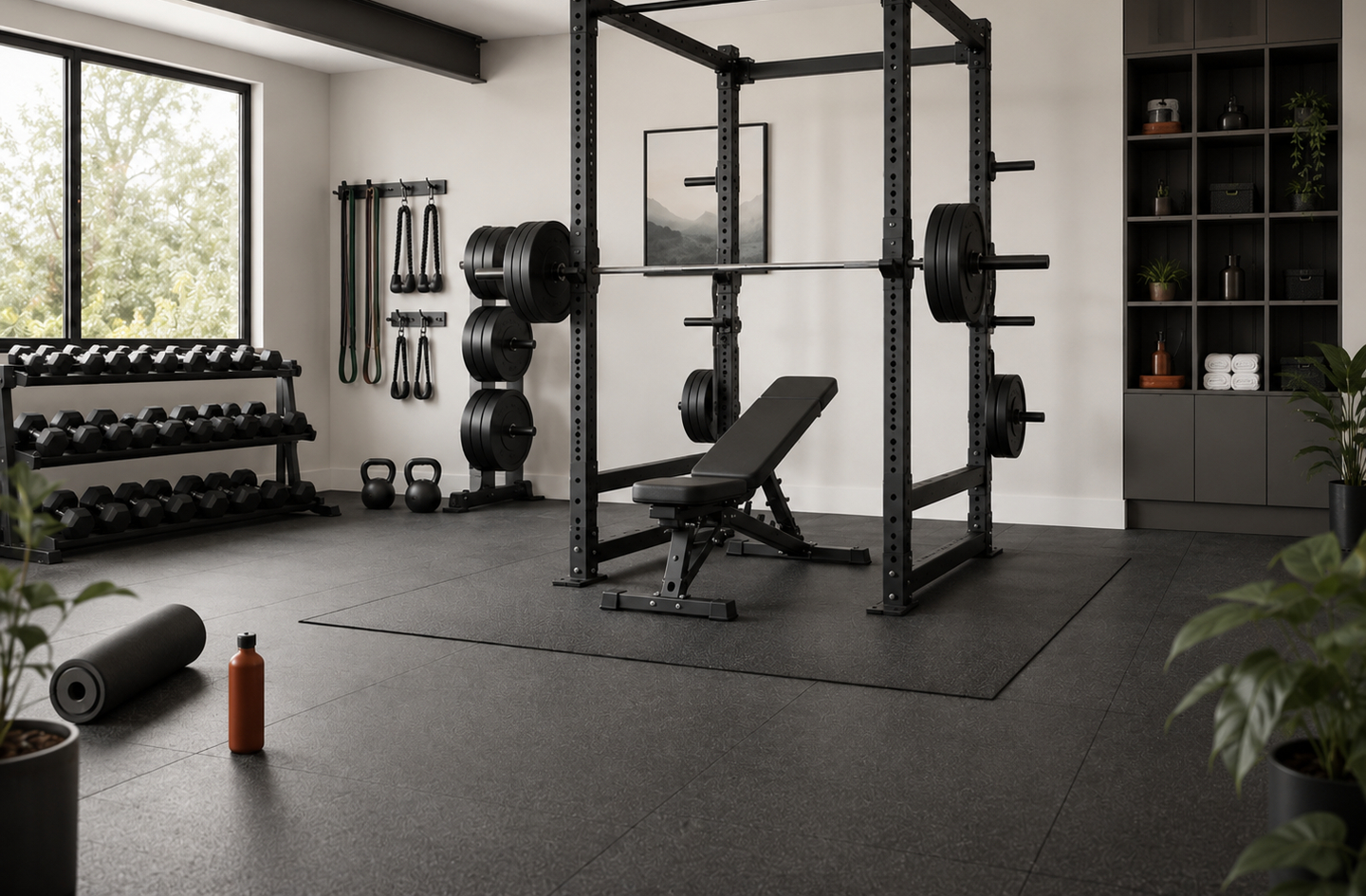

Step 2: Position the Strength Zone as the Anchor
By the end of this step, the rack, bench, and deadlift or platform area will be placed where they provide the most loading clearance, the cleanest access to plate storage, and the most direct path between the strength zone and the next zone in the training sequence.
The strength zone earns its role as the anchor because it contains the heaviest, least movable equipment in the room. The squat rack or power rack is fixed once it is placed. The bench position follows the rack. Once these are set, every other zone arranges around them, not the reverse.
Clearance requirements around the rack
The NSCA recommends 36 inches of clear walkway around a squat rack and a minimum of 3 to 4 feet between rack platforms.4 In a home gym, 36 inches is the minimum on every side where a lifter or spotter will walk. The front needs enough clearance for a loaded bar walkout and re-rack. The sides need enough for a spotter to approach without stepping on plates. The rear needs clearance if the rack has a pull-up station that extends behind the uprights.
The loading path matters as much as the static clearance. Once a bar is loaded on the rack, every plate change involves reaching to a plate tree or floor-stored plate. That path (from the lift position to where the plates live) should have no obstruction. A plate tree beside the rack is workable. A plate tree behind a treadmill, requiring a walk through the cardio zone to load a barbell, is not.
“The space cushion around equipment is often reduced (e.g., 18 inches [45.7 cm] instead of 3 feet [0.9 m]) in home gyms.”
Jamie L. Aslin, MS, and Chat Williams, MS, contributing authors, NSCA’s Essentials of Personal Training, 3rd Edition2
That 18-inch reduction is the most common source of avoidable rework in residential training spaces. Planning for the full 3-foot standard from the start is far less disruptive than rearranging a loaded rack and attached storage after months of use. For rooms of 120 square feet or less, the 10×12 home gym layout guide covers how to prioritize clearance when the footprint forces a tighter arrangement.
Common rack placement errors
The most frequent error is setting the rack in front of the main wall mirror. The mirror ends up behind the lifter during squats and is useless for checking depth. The mirror belongs on a side wall facing the sagittal plane of the primary lifts. The second common error is placing the rack near the room entry, which creates a pinch point on every session. If the room forces the rack near a wall, set it parallel to the wall rather than perpendicular to the door so the bar path extends into open space.
Bench position relative to the rack
The bench sits in front of the rack for bench press and needs full clearance for the lifter’s legs and on both sides for a spotter. When used for dumbbell exercises, the area around the bench also needs clear floor space for dumbbell approach. A common error is tucking the bench between the rack and the wall so it cannot be repositioned. The bench should be fully removable from the rack footprint for exercises that require it to move.
Step 3: Place the Cardio Zone Downstream
By the end of this step, the cardio equipment will be positioned downstream from the strength zone in the training sequence, near an electrical outlet, with full clearance on all sides and a direct return path to the mobility zone for cool-down.
Cardio equipment belongs downstream from strength work in both the session and the room. When strength training comes first and cardio follows, placing the treadmill between the entry and the rack forces a detour past the machine every time you approach the barbell. The cardio zone should be reachable from the strength zone without crossing a loading path.
Floor space requirements by cardio equipment type
The NSCA’s facility design guidelines set minimum footprints per cardio equipment type: a treadmill needs 45 square feet of dedicated floor space including safety clearance; a rowing machine needs 40 square feet; a stationary bike or stair climber needs 24 square feet.4 The American College of Sports Medicine recommends a minimum 3-foot buffer around each piece of cardio equipment.5 The chart below places these requirements side by side with open-floor zone needs to show the full floor budget a balanced home gym requires.
Treadmill clearance and rear safety space
A treadmill pushed against a back wall eliminates the rear clearance that safety requires. Research tracking treadmill-related lower extremity injuries treated at US emergency departments across 2000 to 2022 found that most incidents occurred in home settings.6 Rear clearance behind a running treadmill should be at least 3 feet to allow a user who loses footing to land clear of the machine and the wall. Plan the treadmill position with its in-use safety envelope in mind, not just its static footprint on the floor plan.
Electrical planning for the cardio zone
Treadmills and stair climbers require a grounded 20-amp outlet. The cardio zone must sit near a suitable outlet; routing a power cable across a movement path creates a trip hazard. If an existing outlet needs to be upgraded or a new circuit run, that work belongs to a licensed electrician. The layout logic is engineering-informed; the wiring decision is a professional scope item.
Step 4: Lay Out the Mobility and Warm-Up Zone Near the Entry
By the end of this step, the mobility zone will have a dedicated floor area near the room entry, sized to hold at least one full mat with clearance on all sides, with mobility tools stored in or immediately adjacent to it.
The mobility zone is where training starts, and physically it belongs nearest to where training starts: the room entry. Walking through the strength zone and past the treadmill to reach the foam roller before warming up is a sequence inversion. The warm-up zone should require the fewest steps from the door.
How much floor space the mobility zone actually needs
The NSCA’s CPT guidelines recommend 40 to 60 square feet per user for a stretching and mobility area.3 A standard yoga mat covers about 24 square feet, but a user doing hip hinges, lateral stretches, or banded activation routinely moves beyond the mat boundary. A 6-by-8-foot clear floor area (48 square feet) is a realistic minimum for one person doing a proper warm-up or cool-down. That is the same floor area requirement as a rowing machine. Most home gym builders allocate far less, treating the mobility zone as the space left over after the rack, bench, treadmill, and storage are placed.
The consequence is predictable: warm-ups get shortened because the floor space makes them awkward. Mobility space is functional infrastructure, not a courtesy area.
Flooring and zone marking for the mobility area
The mobility zone benefits from a different floor treatment than the strength zone. Heavy rubber mats that serve the deadlift platform can be uncomfortable for extended floor work. A dedicated yoga or gymnastics mat layer over flat rubber, or a clean section of thinner rubber roll, provides a more appropriate surface for supine mobility, hip stretches, and dynamic warm-up movement. The flooring boundary itself becomes a useful zone marker: stepping onto the mat section signals the warm-up or cool-down phase. Keep this area free of equipment that does not belong to the mobility zone. Resistance bands, foam rollers, and a lacrosse ball belong here. Dumbbells, plates, and collars belong in the strength zone.
The mobility zone doubles as the cool-down area
Training both starts and ends with mobility work, so the warm-up zone and the cool-down zone are the same space. Place it near the entry because it is used first and is the last stop on the way out. A water bottle station and a visible timer near the mat keeps session-start and session-end logistics in one place.
Step 5: Assign Storage to Each Zone
By the end of this step, every storage element in the room will be assigned to the zone it serves, placed to support the loading and transition paths of that zone rather than centralized in one location that forces detours during training.
Centralized storage is one of the most common layout errors in home gyms. A single plate tree in one corner, a dumbbell rack against one wall, and a band hook on the far side of the room means traveling across zones between nearly every set. Storage belongs adjacent to the zone it serves.
Strength zone storage: plates, bars, and collars
Plates store on or immediately beside the rack. Wall-mounted plate storage works well when the rack is close enough to the wall that you can load the barbell from the plate tree without taking more than one or two steps. The test is simple: with a loaded bar on the rack, can you reach the next plate without walking through any other zone or stepping over a mat? If not, the plate storage position needs to move. Collars, barbell clips, and chalk store on or just below the rack, within arm’s reach of the uprights. Anything that touches the barbell in every session should be stored where you access the barbell.
Dumbbell and kettlebell storage in the strength zone
A compact dumbbell rack belongs at the edge of the strength zone nearest the bench, since dumbbell accessory work typically follows barbell compound work. A dumbbell rack pushed to the far wall forces unnecessary zone crossings. For kettlebells, place them at the edge of the strength zone for swings and carries, or at the edge of the mobility zone for warm-up movements.
Cardio and mobility zone storage
Cardio zone storage is simple: a water bottle holder, a towel hook, and a phone shelf. If a fan serves the cardio zone, position it so it does not extend into the walkway between zones. For the mobility zone, foam rollers, lacrosse balls, and resistance bands store beside the mat area. Wall-mounted hooks work for bands; a low shelf contains rollers and balls without consuming floor space.
Step 6: Plan Clear Circulation Paths Between Stations
By the end of this step, you will have identified and protected a minimum 36-inch clear walkway between every zone, with no storage, equipment, or mats blocking the path between strength, cardio, and mobility areas during a normal training session.
Circulation paths are not leftover floor space. They are the connective tissue between zones. A workout room layout where you must step over a mat or navigate around a plate tree to move between stations creates friction in every session and raises the chance of a contact event during a loaded or post-exertion transition.
The 36-inch walkway standard
The NSCA recommends 36 inches of clear walkway around resistance equipment.4 That standard applies to the path between zones, not just the path around individual machines. A 36-inch walkway is slightly wider than a standard door opening and allows one person carrying a plate to pass without contact with adjacent equipment. In a compact home gym, this standard sometimes compresses to 24 inches in the tightest transitions. Below 24 inches, the path stops functioning as a clear walkway. For detailed decision logic around walking paths and equipment transitions, the home gym traffic flow guide maps each equipment type’s clearance against typical room configurations.
Loading paths versus walking paths
A loading path is the route taken when moving a loaded plate or barbell from storage to the lift position. A walking path is any unloaded movement between zones. Loading paths need more clearance: you are carrying weight, vision is partially reduced, and a stumble under load has greater consequences than an unloaded one. Identify your primary loading path (plate storage to barbell to rack) and trace it on your sketch. A mat pushed into that path, a foam roller left beside the rack, or a dumbbell returned to the wrong position can block it mid-session.
Bail paths for rack work
For squat, bench press, and overhead press, the bail path is the route taken when a lift fails and the lifter or bar must move quickly. Neither the squat bail (a step backward) nor the bench bail (a roll to safety bars) should be blocked by equipment, storage, or mats. When the full 3-foot clearance standard cannot be met, the bail direction must at minimum be completely unobstructed.
A final walk-through before equipment moves in
Before finalizing the layout, walk the training sequence in the empty room: entry to mobility zone, then to the rack, then to the cardio equipment, then back to the mat. If any transition feels crowded or forces an unexpected direction change, adjust the layout on paper before equipment moves in. Rearranging a sketch costs nothing; rearranging a loaded squat rack does not.
Workout Room Layout Mistakes to Avoid
The most damaging layout errors are sequence inversions – a zone ends up in the wrong position relative to where it is used in training. These are the most common and the most avoidable.
Placing cardio equipment at the room entry
The treadmill or bike is often the first piece of cardio equipment purchased and the easiest to position: it rolls in and stops near the entry. The result: you walk past the cardio machine to reach the rack on every session. When cardio follows strength work in your training, the machine should follow the rack in the room. If you run cardio-only sessions on some days and strength-only on others, position the cardio machine on the path between the entry and the rack, but ensure it does not block the loading clearance path around the rack.
Leaving no intentional floor space for mobility work
The mobility zone is the most frequently sacrificed zone in home gym layouts. Once the rack, bench, treadmill, and dumbbell rack are positioned, the remaining floor is assumed to be the stretching area by default. That leftover floor is rarely the 40 to 60 square feet the NSCA specifies for a proper mobility area. If the room cannot accommodate both a full equipment set and a 48-square-foot mobility floor, the equipment set needs to be reduced – not the mobility zone. Shortening or skipping the warm-up because the floor space makes it awkward is a layout problem that compounds over years of training.
Treadmill clearance against a back wall
A treadmill with no rear clearance removes the recovery space that a stumble requires. The NSCA guidelines specify that treadmills need clearance behind the running surface, not only on the sides.4 Research covering more than 150,000 estimated treadmill-related lower extremity injuries at US emergency departments between 2000 and 2022 found that most occurred in home settings.6 A minimum of 3 feet of clear space behind the treadmill is the standard to plan for in any residential installation.
Centralizing all storage in one location
A single storage wall looks organized but forces unnecessary travel across zones during every session. Zone-specific storage keeps each implement within its zone’s footprint. Loading paths stay shorter and set transitions stay cleaner.
What a Working Layout Looks Like
A finished, functional workout room layout passes a simple walking test: you can move through the session from warm-up to strength to cardio to cool-down without rerouting around equipment, crossing a loading path while carrying weight, or stepping over anything placed outside its zone.
Concretely:
- The foam roller and mat are reachable from the door in three steps or fewer.
- The plate storage is within arm’s reach of the barbell on the rack.
- The treadmill has at least 3 feet of clear space on all sides, including the rear.
- No storage, mat, or equipment blocks the main walkway between zones.
- The layout stays functional after a full session: plates are re-racked, mats are clear, and the walkway is unobstructed without a dedicated reset effort.
Before moving equipment, validate the arrangement in a digital floor plan. The layout planner tools comparison covers which free tools accurately represent equipment footprints and clearance constraints. For narrow or square rooms, the layout by room shape guide compares zone arrangements and their trade-offs for each configuration.
Frequently Asked Questions
How much floor space does a home workout room need?
For a basic setup with a rack, bench, and one cardio machine, a practical minimum is around 150 to 200 square feet. The NSCA recommends 45 square feet for a treadmill footprint, 40 to 60 square feet for a mobility and stretching zone, and 36 inches of walkway around resistance equipment.3 The strength zone (rack, bench, and loading paths) adds another 60 to 80 square feet.
Should the treadmill or the rack go in first?
Place the rack first. It is the heaviest and least movable piece, and its clearance requirements (36 inches on all sides, plus loading paths) set the constraints for everything else.4 The treadmill then positions downstream from the rack, near a grounded electrical outlet. If the outlet location conflicts with ideal rack placement, the rack takes priority.
Can a small room have both a strength zone and a cardio zone?
Yes, but equipment selection determines what is possible. A stationary bike requires only 24 square feet versus 45 for a treadmill.4 A bike or folding rower recovers significant floor space in a compact room while still providing a cardio option downstream from strength work. Adjustable dumbbells recover another 6 to 8 square feet compared to a fixed dumbbell rack.
Where should the mirror go in a workout room?
Place the mirror on a side wall perpendicular to the primary movement plane of the key lifts, facing the sagittal plane for squats, deadlifts, and press work. A mirror behind the rack reflects only the back of the lifter’s head during primary movements and is not useful for form checks. A side-wall mirror allows a lateral view of depth, bar path, and back position during barbell work without requiring the lifter to turn away from the rack mid-set.
How do you keep storage from cluttering the workout room?
Assign storage to the zone it serves. Plates and collars store at the rack; foam rollers and bands store at the mobility mat; cardio accessories stay beside the machine.3 Vertical wall storage (plate pegs, band hooks, bar mounts) recovers floor space without expanding the room’s footprint. Equipment not used in a session belongs outside the gym or in a closed cabinet.
Limitations and Edge Cases
- This guide covers standard rectangular room configurations. L-shaped rooms, rooms with structural columns, or rooms with low ceiling sections require adjustments to the zone sequence model. Those configurations are covered in the layout by room shape guide.
- The NSCA clearance figures cited here originate in commercial facility guidelines applied to the home context. In unusually tight home footprints, consult the source chapters directly before finalizing placements.
- If any zone placement requires mounting equipment to a wall, ceiling, or floor slab, that work involves structural and load-bearing decisions outside the scope of this layout guide. Consult a licensed contractor or structural engineer before anchoring any load-bearing equipment.
References
- Health & Fitness Association – “One in Four Americans Belonged to a Gym in 2024,” press release, 2025.
- Human Kinetics – Jamie L. Aslin, MS, and Chat Williams, MS, “Setting Up a Home Gym Facility,” NSCA’s Essentials of Personal Training, 3rd Edition, 2022.
- PT Pioneer – “NSCA CPT Chapter 24: Facility and Equipment Layout,” summary of NSCA Certified Personal Trainer content, 2022.
- PT Pioneer – “NSCA CSCS Chapter 23: Facility Design, Layout, and Organization,” summary of NSCA Certified Strength and Conditioning Specialist content, 2022.
- IDEA Health & Fitness Association – “Facility Design and Construction 101, Part One,” citing ACSM facility guidelines, 2020.
- Lower Extremity Review – “Treadmill-Related Lower Extremity Injuries Treated at United States Emergency Departments,” citing NEISS/CPSC national estimate data, 2023.
Conclusion
A workout room layout built around the order of training removes the friction that accumulates when equipment lands wherever it fits. Warm-up and mobility near the entry, strength as the central anchor, cardio downstream, and zone-specific storage throughout creates a room that supports the session rather than working against it. The layout is either set up to help you train or set up to slow you down; there is no neutral position once the rack is placed and the loading paths are defined.
