Most people evaluate garage gym equipment by load rating and price. The three variables that actually decide whether it works are never on the spec sheet: the concrete under it, the cold around it, and the clearance above and beside it. This article covers one angle of the topic explored in Strength Zone Design: A Complete Guide to Your Home Lifting Space. Unheated attached garages run 15 to 20 degrees Fahrenheit warmer than the outside air temperature,1 which still places them well below freezing in most cold-climate winters. Understanding what that does to rubber, steel, and your available overhead room changes which garage gym equipment actually deserves a place in the bay.
Quick Answer
Which garage gym equipment holds up when judged by concrete, cold, and clearance?
Freestanding power racks, cast-iron or chrome-plated barbells, and flat benches clear all three tests in most unheated garages, provided the floor is shimmed level and the rack is positioned outside the door-track zone. Rubber stall mats become a risk below 5°C (41°F),2 and wall-mounted pull-up bars are frequently blocked by the door opener track in standard 8-foot ceilings – which leaves only 81 inches of usable overhead room after the 15-inch headroom the track system consumes.6
Key Takeaways
- An unheated garage in a cold climate can drop to 0°F or below, and standard SBR rubber mats reach their glass transition point between -15°C and -20°C (-5°F to -4°F), where cracking and delamination begin.3
- A typical garage floor sloped at 1/4 inch per foot creates a 5-inch total drop across a 20-foot bay – enough to place a freestanding rack more than five times outside its level specification without any visible sign of tilt.
- A standard 8-foot garage ceiling with an electric door opener leaves only 81 usable inches above the door track, which is 15 inches short of the 96-inch minimum a pull-up bar with proper chin clearance requires.6
- Steel corrosion accelerates measurably when relative humidity exceeds 50 to 60 percent4 – a threshold the condensation cycle of a cold garage crosses routinely.
Why the Buy-First Approach Fails Garage Gym Builders
The standard garage gym checklist starts with the rack. Then the bar and plates. Then flooring. Then “whatever fits.” The room is treated as a neutral backdrop – a container waiting to be filled. That framing leads predictably to the same set of problems: the bar hits the door track on the first overhead press, the rack wobbles because the floor drops two inches from one post to the next, the rubber mats turn stiff and brittle by February, and the barbell knurling shows rust by spring.
None of these failures are equipment defects. The gear performed exactly as designed in the environment it was designed for – a flat, climate-controlled, purpose-built gym floor. A residential garage is none of those things. It has a sloped concrete slab, seasonal temperature swings that can push well below zero in northern climates, humidity cycles driven by vehicle exhaust and outdoor air, and a ceiling interrupted by a door system that claims 12 to 15 inches of overhead room before you plan a single lift.6
The conventional view assumes that buying better equipment fixes these problems. A heavier rack won’t level itself on a sloped floor. A more expensive bar won’t shed its rust faster than a cheaper one when condensation cycles on bare steel for months. A taller pull-up bar won’t clear a door track that physically occupies the space you were counting on. The fix for each problem is upstream of the purchase – it lives in the measurement you didn’t take before ordering.
This article works through each of the three room variables – concrete, cold, and clearance – and assesses which categories of strength equipment survive honest contact with them. The goal isn’t to suggest that a garage gym is impossible or that you need to spend more. The goal is to change the order of decisions: measure the room first, then match the equipment to what you found.
Concrete: Three Ways the Slab Shapes Equipment Before You Lift
Concrete garage floors are genuinely strong surfaces for heavy equipment. A residential concrete slab handles distributed loads far exceeding the weight of a loaded power rack. The issues with concrete in a garage gym aren’t structural – they’re geometric and surface-related. Three specific slab characteristics shape which equipment works and how it must be set up.
The floor slope and what it does to rack geometry
Residential garage floors are required to slope toward the door to prevent standing water inside the bay. The standard practice targets 1/8 to 1/4 inch of drop per foot of run, which the International Residential Code supports as the minimum needed to move liquids to the door threshold.8 On a typical 20-foot-deep garage, a slope of 1/4 inch per foot produces a total drop of 5 inches from the rear wall to the door. A freestanding squat rack with a 50-inch front-to-back footprint would sit with its front posts roughly 1.25 inches lower than its rear posts – or vice versa, depending on which direction you orient the unit. Most manufacturers specify level installation to within 1/4 inch. A standard-slope concrete floor places the rack more than five times outside that specification without any visible sign of tilt.
The practical consequence shows up in loaded barbell exercises. A bar resting in J-hooks on an out-of-level rack doesn’t sit horizontal; it loads one side of the knurling before the other. Over time, the asymmetry affects spotter arm engagement and changes the contact geometry if the bar is dropped to the safety bars. This isn’t a reason to avoid a concrete floor – it’s a reason to shim the rack legs before a single plate goes on the bar. A contractor’s level and a set of steel shims or rubber pads of known thickness address this directly. For more significant slope – anything over 3/8 inch per foot – consult a concrete contractor about self-leveling options before setting heavy equipment.
Hard floor and impact transfer
Concrete transfers impact energy upward rather than absorbing it. Dropping a barbell on bare concrete sends a percussive shock through the slab, and repeated drops can fracture the surface or create micro-fractures that grow over time. The standard solution – stall mats or rubber flooring – works well in a heated environment. In a cold garage, the performance of that rubber layer changes substantially (covered in the next section). The installation decision matters: thick rubber tiles or rolled mats need to be cut flat to the slope, not laid straight across it, or they create a secondary slope on top of the original one. Any rubber layer that bridges the slope without conforming to it becomes a tripping hazard at the edges where it lifts off the concrete.
Moisture migration through the slab
Concrete is porous. Ground moisture migrates through an uncoated slab, particularly in spring when soil water tables rise or after heavy rain. In a garage gym, this moisture rises into the rubber flooring layer, creates a trapped humid environment under the mats, and accelerates rust on any steel resting directly on or near the floor – including plate storage trees, dumbbell racks, and barbell holders. An epoxy or polyurea coating on the concrete slab before flooring is installed blocks this migration. Without it, periodic lifting and drying of the mats is the minimum maintenance step. Equipment legs that rest directly on bare concrete corrode faster than legs on coated concrete or on rubber with adequate airflow underneath.
Cold: How an Unheated Garage Changes Every Material Decision
Cold changes the mechanical properties of nearly every material in a garage gym – rubber, steel, and the lubricants protecting both. The specific temperatures matter because the failure modes are threshold behaviors: materials perform normally up to a point, then degrade rapidly once they cross it.
What cold does to rubber flooring
Most rubber gym mats are made from SBR (styrene-butadiene rubber), the most common general-purpose compound. SBR is formulated for ambient temperatures between 5°C and 40°C (41°F to 104°F).2 Below 5°C, the mat starts to stiffen noticeably. At the glass transition point of -15°C to -20°C (-5°F to -4°F), the molecular chains can no longer absorb impact energy elastically, and the surface becomes brittle.3 Repeated thermal cycling – warming above freezing during a training session, then re-freezing overnight – accelerates cracking and delamination at the mat edges and seams. A garage that hits 0°F on January nights puts standard SBR flooring in its failure zone on a regular basis.
The practical implications are specific. Rubber mats in a cold garage need to be thicker (3/4 inch minimum, not 3/8 inch) to slow the rate at which they cool to the concrete temperature. Mats should be left in place rather than rolled up and re-laid, because repeated flexing of cold rubber accelerates cracking. Low-temperature rubber compounds (EPDM or recycled rubber with a broader operating range) are available for cold-climate applications and hold up through more extreme cycles. This isn’t an abstract material science point – it’s the difference between flooring that lasts a year in a cold garage and flooring that lasts a decade.
What cold does to steel equipment
Steel itself doesn’t weaken meaningfully at residential cold temperatures – the transition to brittle fracture for structural carbon steel occurs far below any temperature a residential garage reaches. The real cold-related problem for steel gym equipment is corrosion driven by the condensation cycle. When a cold garage warms rapidly during a training session or as outdoor temperatures rise, moisture from the air condenses on cold steel surfaces just as it does on a cold drink glass. This repeated wet-dry cycle is highly corrosive. Research shows steel corrosion rates accelerate significantly when relative humidity exceeds 50 to 60 percent,4 and a garage undergoing a temperature swing from 20°F to 50°F crosses that threshold routinely as warm humid air hits cold metal surfaces.
Coating type determines how much maintenance a bar requires in this environment. Bare steel and black oxide finishes offer no real corrosion barrier and will show rust on the knurling within one winter season if not wiped down and oiled after every session. Zinc-plated and chrome-plated bars are meaningfully more resistant. Cerakote and stainless steel bars are the most durable in cold, humid garage conditions, though neither eliminates the need for periodic wiping and light oiling. The upfront cost difference is real, but so is the maintenance burden difference over a decade of cold-garage use.
Cold and the training session itself
A training session in a 25°F garage requires a longer warm-up before loading – not just for muscular readiness but because the bar itself is cold, the knurling cuts differently against cold hands, and the weight plates are denser and stiffer to handle. This is an equipment-adjacent concern rather than a pure material failure, but it affects which equipment you want: a pull-up bar that requires chalk is nearly unusable with cold hands on a frozen steel bar; a trap bar that limits knurling grip surface is more tolerable in those conditions than a standard barbell. Some lifters in cold-climate garage gyms keep a small portable heater running 30 minutes before training to bring the ambient temperature above 45°F before they begin. If that approach is used, the heater must be clear of the training area and away from rubber mats; check with a licensed electrician on outlet capacity before adding electrical load to a garage circuit.
Clearance: The Door Track and Ceiling Height Problem No Spec Sheet Mentions
Ceiling clearance in a garage gym is almost always less than the raw ceiling height suggests. The door track system – the hardware that guides the garage door as it opens – runs horizontally along the ceiling from the door opening toward the rear wall, and it consumes a significant band of overhead room. That consumed space is permanent, fixed, and present everywhere the track runs, not just at the door itself.
How much headroom the door system consumes
A standard garage door with a torsion spring and electric opener requires a minimum of 15 inches of headroom above the door’s top edge to accommodate the track, spring, and opener unit.6 In a garage with a standard 7-foot door and an 8-foot ceiling (96 inches total), that leaves 81 inches of usable overhead clearance – roughly 6 feet 9 inches – in the zone the track occupies. A garage door without a powered opener needs only 12 inches of headroom for the torsion spring and track alone, leaving 84 inches in an 8-foot-ceiling garage.
The pull-up bar requirement makes this immediately concrete. BodySpec’s pull-up bar selection guide specifies a minimum of 12 inches of clearance above the bar to allow chin-over-bar movement and leg raises without contact with the ceiling.7 A pull-up bar mounted at 84 inches from the floor (7 feet – tall enough for a 6-foot lifter to hang clear of the floor) plus the required 12 inches above places the top of the system at 96 inches – exactly at the ceiling height of a standard 8-foot garage. After the door track consumes 15 inches, the available height in that zone drops to 81 inches. A bar at 84 inches from the floor would need the ceiling to be at 96 inches at that point; it has only 81. The bar cannot be mounted at full height in that zone.
Visualizing the clearance deficit across garage configurations
The chart below synthesizes door headroom data from Continental Door Co6 with standard ceiling height ranges5 and the pull-up bar clearance minimum7 to show which configurations actually support overhead bar work.
Door swing and lateral equipment placement
The overhead door track isn’t the only clearance constraint the door system creates. A garage door in mid-swing occupies floor space in front of the door opening and a vertical plane that moves inward as the door opens. Any equipment positioned within about 12 to 18 inches of the door opening’s side edges risks contact with the door panel as it swings. A rack positioned too close to the door side wall can interfere with the door’s vertical travel before it transitions to the horizontal track. Floor equipment – plate trees, dumbbell racks, kettlebell storage – that migrates toward the door during a session creates the same problem. Mapping the door’s full travel arc before placing any equipment is a one-time measurement that prevents damage to both the door and the gear.

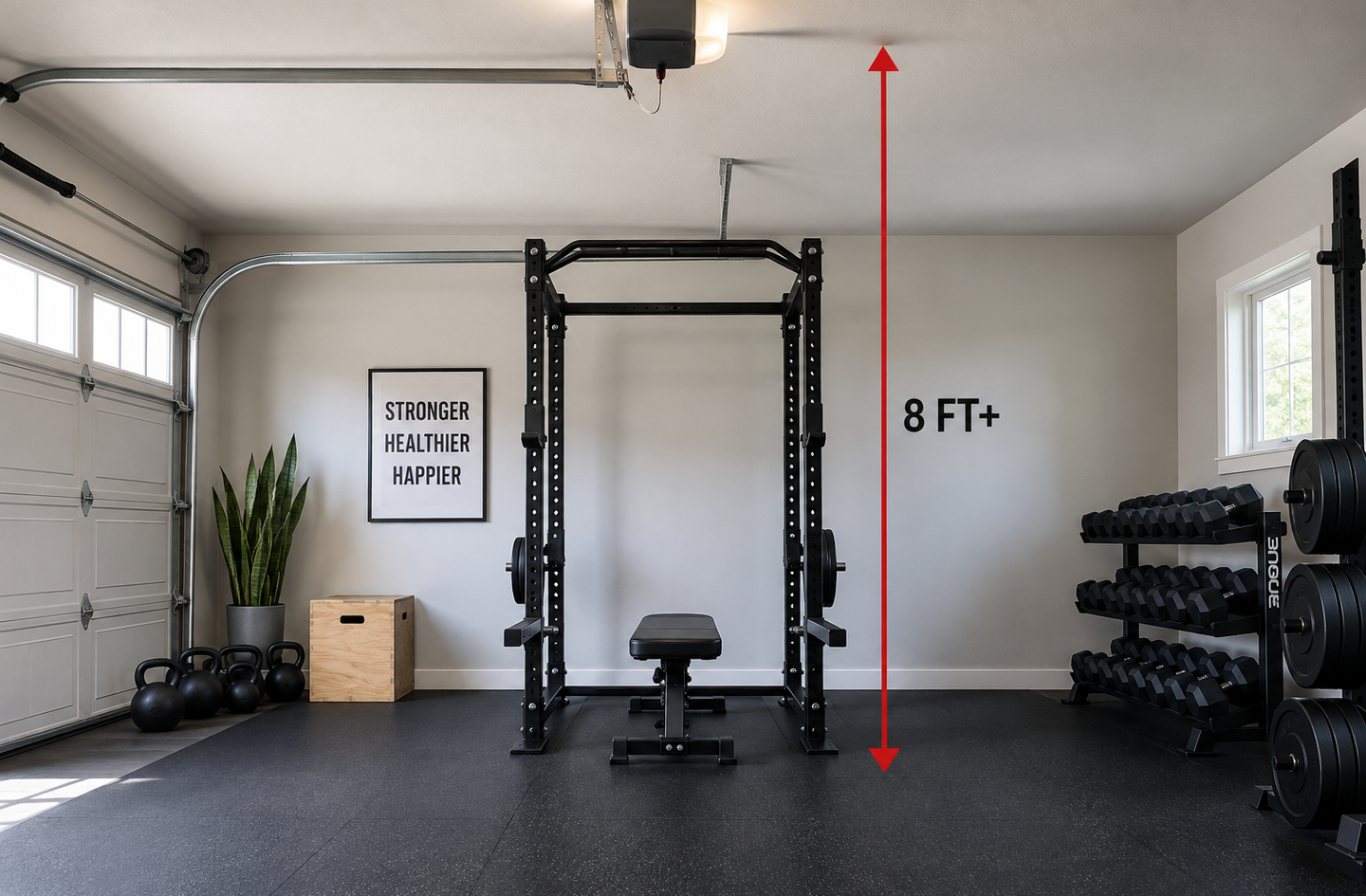

Ceiling height and overhead press clearance
The overhead press has a higher ceiling requirement than any other common barbell exercise. A lifter standing at 6 feet with arms extended overhead holds the bar at roughly 8 feet. Add the bar’s diameter and the standard safety margin above the highest point of bar travel, and the overhead press needs a clear ceiling at approximately 9 feet or higher for most lifters. A standard 8-foot garage ceiling does not support a standing overhead press with a standard barbell. This is not a clearance technicality – pressing into a ceiling joist or door track structure is a genuine injury risk. In an 8-foot garage, the overhead press belongs on a seated or behind-the-neck variation that lowers the bar path, or it moves to an outdoor space where the ceiling is the sky.
Which Strength Pieces Clear All Three Filters
Running each major equipment category through all three tests produces a clearer picture of what belongs in an unheated garage gym and what requires modifications or substitutions. The table below summarizes the evaluation; the prose that follows explains the reasoning.
| Equipment | Concrete (slope, moisture) | Cold (rubber, steel, condensation) | Clearance (ceiling, door track) |
|---|---|---|---|
| Freestanding power rack | Shim legs before loading; seal concrete to block moisture | Steel frame unaffected; J-hook contact points need periodic oiling | Clear in most 8-ft ceilings for bench and squat; not for standing OHP |
| Chrome or Cerakote barbell | Store off-floor on hooks or rack; avoid bare concrete contact | Most durable coatings; wipe and oil after cold condensation sessions | No clearance issue when racked; overhead press requires 9-ft+ ceiling |
| Bare steel or black oxide barbell | Keep off concrete; corrosion from moisture migration | High rust risk in condensation cycle; weekly oiling required | Same as above |
| Flat or adjustable bench | Shim if slope causes wobble on fully upright positions | Steel frame unaffected; vinyl padding can stiffen in cold | No clearance issue for bench press |
| SBR rubber stall mats | Conform to slope; do not bridge it; seal concrete first | Risk below 5°C; crack risk in freeze-thaw cycles; use EPDM in cold climates | Not a clearance item |
| Cast iron plate set | Store on tree; do not leave on bare concrete | Cast iron holds up in cold; coating-free plates surface-rust | Not a clearance item |
| Wall-mounted pull-up bar | Masonry or wood-stud anchor; consult a contractor on specific wall type | Steel bar handles cold; knurling difficult with cold hands | Blocked by door track in most 8-ft garages; requires 9-ft+ or rear-wall position |
| Trap bar (hex bar) | Shim floor or use platform; no lean risk if loaded symmetrically | Same condensation risk as barbell; handles more forgiving than knurled straight bar in cold | No clearance issue; floor height only |
The equipment that survives all three filters with the least modification is: a freestanding power rack (shimmed level), a chrome or Cerakote barbell stored on hooks, a flat bench, and EPDM or recycled-rubber flooring cut to conform to the slab slope. A cast iron plate set and a trap bar add useful versatility without introducing new failure modes. That core setup supports squats, deadlifts, bench press, rows, and trap-bar work year-round in an unheated garage without requiring a climate-controlled environment.
What this setup deliberately excludes: wall-mounted pull-up bars in 8-foot garages (clearance), bare steel bars left unprotected through a cold winter (corrosion), standard SBR mats in cold climates (brittle failure), and standing overhead press with a standard bar in an 8-foot ceiling (injury risk). Excluding these isn’t a concession – it’s the result of running the room’s actual constraints as filters before the purchase decision.
How to Audit Your Garage Before Buying Any Equipment
The measurement work takes under an hour. Done before any equipment is ordered, it eliminates the problems described above. Done after equipment arrives, it tells you what modifications or substitutions are needed.
Measuring for concrete constraints
Place a 4-foot or longer contractor’s level on the floor in the intended rack position, running both parallel and perpendicular to the door. Record the bubble position and use a tape measure or feeler gauge to quantify the gap under the level’s low end. A gap over 1/4 inch means the rack legs need shimming before any load goes on the bar. Note which direction the floor drops – front-to-back toward the door is typical, but side-to-side slope from improper original placement also occurs. Mark the intended position of each rack leg with tape, then record the exact height difference at each corner. That tells you what combination of shims is needed.
Checking cold exposure levels
Place a min-max thermometer in the garage before the heating season and record the lowest overnight temperature over a two-week period. If your garage drops below 5°C (41°F) regularly, plan for low-temperature flooring and coated steel equipment. If it drops below -10°C (14°F), standard SBR mats are a real risk. A min-max thermometer costs under $20 and gives you the actual data rather than a regional average. Relative humidity above 60 percent accelerates steel corrosion and pairs with temperature swings to produce the condensation cycle described earlier – a hygrometer alongside the thermometer adds the other critical variable.
Mapping clearance before placing equipment
Measure the ceiling height at the point where the door track runs. This is not the same as the ceiling height at the rear wall, which is typically taller. The track descends from the ceiling as the door opens, so measure at the point where the track levels off into its horizontal run – that is where the lowest usable height exists. Note whether the garage has a powered opener (15-inch headroom consumed) or a manual system with torsion springs only (12 inches consumed). Subtract that headroom from the measured ceiling height to get your usable overhead room. If the result is below 96 inches and you want a pull-up bar, the bar must be positioned away from the door-track zone – typically toward the rear wall or a side wall clear of the door mechanism.
Measure the door’s full swing arc by opening it slowly and marking the floor position of the door panel’s leading edge at each stage of travel. Any equipment inside that arc must be moved. Equipment on the side walls near the door opening should stay at least 18 inches back from the wall edge where the door panel travels vertically before it turns onto the horizontal track.
Frequently Asked Questions
Does an unheated garage damage barbells over time?
An unheated garage doesn’t damage barbells directly – the condensation cycle does. When cold steel warms rapidly, moisture condenses on the knurling. Steel corrosion accelerates when relative humidity exceeds 50 to 60 percent,4 which the condensation cycle crosses routinely. Chrome, Cerakote, and stainless steel bars resist this far better than bare steel or black oxide. Wiping and applying a light oil coat after each cold-weather session is the minimum maintenance for any bar in this environment.
What ceiling height do I actually need for a pull-up bar in a garage gym?
You need the ceiling height at the bar’s position to be at least 96 inches after subtracting door track headroom. A bar mounted at 84 inches from the floor (suitable for most 6-foot lifters) requires 12 inches of clearance above7 – totaling 96 inches. An 8-foot ceiling leaves only 81 to 84 inches after the door track system, so the bar must move to a zone clear of the track, typically the rear or side wall.
Does a sloped garage floor affect my squat rack?
Yes, in two ways. A standard garage floor sloped at 1/4 inch per foot8 drops 1.25 inches across a 50-inch rack footprint – five times the typical 1/4-inch level specification for most racks. An out-of-level rack changes how the bar sits in J-hooks and how it contacts safety bars during a bail. Shimming each leg to level the rack before loading is the solution, not a workaround.
Can rubber gym mats survive below-freezing temperatures?
Standard SBR rubber mats are rated for temperatures down to 5°C (41°F).2 Below that, the material stiffens and becomes more brittle. At the glass transition point of -15°C to -20°C, cracking and delamination become likely, especially at mat edges and seams where flex stress concentrates during thermal cycling. EPDM rubber and recycled-rubber compounds rated for lower temperatures hold up better in cold-climate garages.
How much clearance does a garage door need around strength equipment?
A standard garage door with a powered opener requires 15 inches of overhead headroom above the door,6 and the door panel sweeps through a vertical arc before transitioning to the horizontal track. Keep equipment at least 18 inches from side walls near the door opening. Map the full door swing arc by opening the door slowly and marking where the panel edge travels – any equipment inside that zone is at risk of contact.
Limitations and Edge Cases
- This article addresses unheated or minimally heated garages in cold-climate regions. A garage with a dedicated heater that maintains 50°F or above changes the cold-related material decisions significantly – SBR rubber and bare steel perform well in that environment.
- Temperature and humidity data reflect general patterns from community sources and industry resources, not a controlled study of a specific garage. Your garage’s actual thermal performance depends on insulation, orientation, and local climate. A min-max thermometer gives you the real data for your space.
- Anchoring a wall-mounted rack or pull-up bar to garage walls involves structural considerations specific to your wall type (wood stud, concrete block, brick). This article does not evaluate anchoring suitability. Consult a licensed contractor before anchoring any load-bearing equipment to a wall.
References
- The Garage Journal – “What Temperature is your Garage in the Winter?” community data thread reporting 15-20°F differential for unheated attached garages, 2023.
- Rubber Co UK – “Rubber Flooring for Cold Rooms and Freezer Environments: Low-Temperature Performance,” 2026. Documents SBR rubber operating range of 5°C to 40°C.
- Rubber & Seal – “What Happens to Rubber at Low Temperature?” Technical overview of elastomer glass transition behavior, SBR failure range -15°C to -20°C, and cold-temperature cracking mechanisms.
- Horton Barbell – “Will Gym Equipment Rust in a Garage?” Documents steel corrosion acceleration above 50-60% relative humidity and prevention strategies for garage gym environments.
- STI Garage Door – “What Should the Minimum Ceiling Height for a Garage Be?” Documents standard residential garage ceiling heights of 8-9 ft and minimum clearance requirements for door systems.
- Continental Door Co – “How Much Headroom For My Garage Door?” Specifies 15-inch minimum headroom for standard garage door with electric opener, 12 inches for torsion spring system only.
- BodySpec – “Pull-Up Bar Buyer’s Guide: Choosing the Right Bar for You.” Documents 12-inch minimum clearance above the bar for chin clearance and leg raises.
- Garage Made Simple – “Garage Slab Slope Code,” citing the International Residential Code standard of 1/8 to 1/4 inch per foot for garage floor drainage slope.
Conclusion
Garage gym equipment doesn’t fail because the spec sheet lied. It fails because the spec sheet described performance in a neutral, climate-controlled environment and the garage is neither neutral nor controlled. A standard concrete slab with a 1/4-inch-per-foot slope, an unheated bay that drops below freezing overnight, and a ceiling interrupted by a 15-inch door track system are not edge cases – they are the default conditions in a residential garage gym. Matching equipment to those conditions before ordering is the decision that determines whether the setup works for a decade or requires expensive corrections after the first winter.
For the broader planning framework on how the lifting zone fits within a full room design, see the overview in Strength Zone Design: A Complete Guide to Your Home Lifting Space for context on how clearance, storage, and training flow connect across the whole garage bay.
