A basement gym works differently than a garage or spare-room setup. The space is below grade, meaning moisture, ceiling clearance, ventilation, and egress all need to be evaluated before a rack or treadmill goes in. About 1 in 15 US homes tests at or above the EPA action level of 4 picocuries per liter (pCi/L) for radon,1 which makes pre-use testing important for any basement converted into a regular training space. This guide covers the complete planning sequence: room readiness, space and clearance, infrastructure, equipment decisions, and budget phasing, with routes to detailed guides on every subtopic.
Quick Answer
What is Basement Gym Planning?
Basement gym planning is the process of evaluating a below-grade space across five interconnected areas before buying or placing equipment: moisture and air quality, headroom and spatial clearance, mechanical infrastructure (electrical, ventilation, lighting), equipment fit for below-grade conditions, and budget sequencing. The room assessment leads; equipment selection follows from it.
Why it matters:
Basements differ from above-grade rooms in humidity levels, air exchange, water-entry risk, and egress constraints. Skipping the assessment and leading with equipment is the most common source of expensive rework in below-grade gym builds.
Key Takeaways
- The International Residential Code (IRC) Section R305.1 requires a minimum 7-foot (2,134 mm) ceiling height in habitable rooms;2 strength equipment often needs additional clearance above that for overhead lifts and pull-up positions.
- ASHRAE Standard 62.1 recommends maintaining 30-60% relative humidity in occupied indoor spaces;3 most basement gyms require a dehumidifier with continuous drainage to stay in that range.
- Relative humidity above 60% accelerates mold growth on building materials4 and speeds corrosion on exposed steel gym equipment.
- Radon testing should happen before workouts begin, not after the room is finished and equipment is placed.
- The planning sequence is fixed: water and air quality, then clearance, then infrastructure, then equipment. Running it in a different order creates predictable failures.
Basement Gym Planning in 30 Seconds
| If you are… | Do this first |
|---|---|
| Starting with an unfinished basement | Assess moisture sources, fix active water entry, test for radon, then plan layout |
| Working with a ceiling under 8 feet (finished) | Measure exact headroom at every planned training zone; choose equipment that fits the actual measurement |
| Dealing with a known sump pump or floor drain | Map drain locations and sump pit footprint before placing any fixed equipment |
| Planning strength training below grade | Confirm ceiling clearance, egress path, and circuit availability before selecting a rack |
| Building on a tight budget | Prioritize moisture control, lighting, and safe power before cosmetic finishes |
What Is Basement Gym Planning?

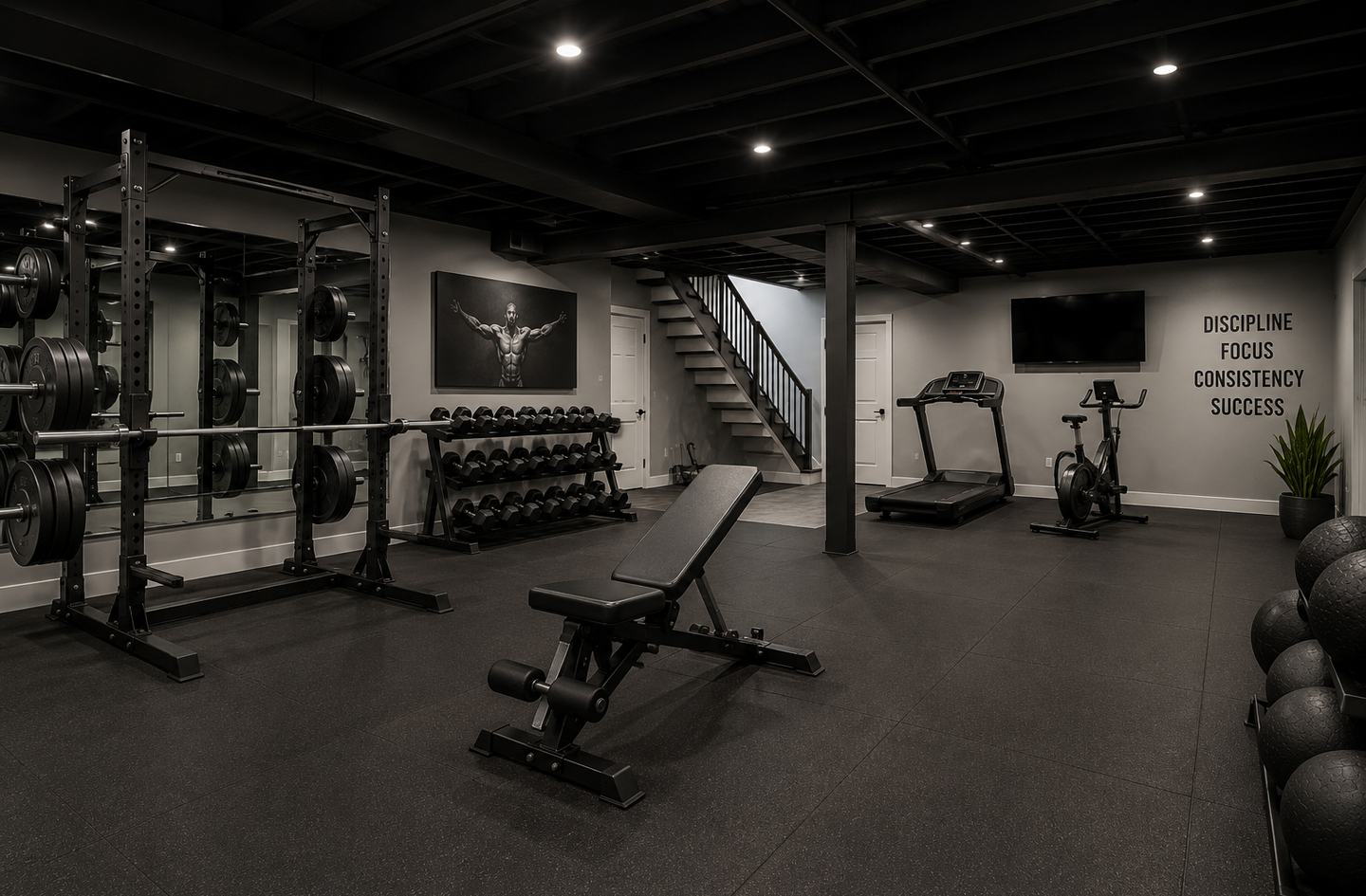

Basement gym planning is a structured approach to evaluating and converting a below-grade space into a functional, safe, and durable training environment. Unlike a garage gym or spare-room setup, a basement presents a fixed set of constraints that cannot be bypassed: walls and a slab in contact with the ground, limited natural airflow, often constrained ceiling height, potential for water entry from multiple directions, and egress paths that may intersect with mechanical systems.
The planning process addresses five interconnected areas. Room readiness covers moisture monitoring, flooding risk, radon testing, and the baseline condition of an unfinished space. Space and clearance addresses ceiling height measurements, headroom for specific lifts and equipment, small-footprint tradeoffs, and egress path requirements. Infrastructure covers electrical load planning, ventilation and airflow, lighting for form-check visibility, and sound transmission. Equipment and durability focuses on selecting gear that fits below-grade constraints, planning delivery through stair and hallway access, and protecting metal components from moisture and corrosion over time. Budget and phasing establishes which investments to make first and which cosmetic finishes can wait.
What separates basement planning from above-grade planning is the order of decisions. A spare-bedroom gym often starts with equipment and works backward. A basement gym cannot take that approach. A ceiling too low for a full-size power rack is not a rack problem; it is a room constraint that determines which rack format belongs in that space. A floor drain crossing the planned rack footprint is not a minor inconvenience; it is a placement constraint that should be mapped before any equipment is ordered. The room conditions drive the equipment list, not the reverse.
This hub is an engineering-informed educational resource. It does not provide certified structural engineering, electrical specification, HVAC design, or medical advice. Decisions in those areas belong with licensed professionals.
Why Basement Gym Planning Matters
Basements are the room type most often converted into a home gym and most often converted incorrectly. The reason is visibility: moisture, radon, airflow, and clearance problems do not show up in gym-tour videos. They show up six months after the rack is bolted down.
Radon is the second leading cause of lung cancer in the United States, responsible for an estimated 21,000 deaths per year.1 A below-grade space converted into a daily training room increases cumulative exposure compared with occasional basement use. Testing before the room is finished and regularly occupied is a straightforward step that gym-planning content almost never mentions.
The other failure patterns are equally predictable:
- Steel barbells, racks, and cable pulleys begin corroding within the first training season in an uncontrolled basement environment, because relative humidity above 60% accelerates oxidation on exposed metal.4
- A power rack ordered for a room with an 8-foot finished ceiling may not clear pull-up positions once the loaded barbell height and the lifter’s lockout are accounted for.
- Cardio equipment, dehumidifiers, fans, and lighting all compete for circuits. Running them on shared residential circuits trips breakers mid-session and, depending on the equipment, may exceed what the wiring is rated to handle.
- Equipment ordered without measuring the stairwell turn, the landing width, and the entry door clearance arrives at the basement door and does not fit.
Basement water events affect equipment and finishes from a single incident.5 Seasonal seepage or summer condensation buildup can corrode steel and require moving equipment before a repair can happen.
Each of these failures is preventable with an upfront assessment. The cost of the assessment is time. The cost of skipping it is often a partial renovation.
The 5-Part Basement Gym Planning Framework
Five core dimensions account for the full scope of a basement gym conversion. They are not independent: decisions in one dimension create constraints or opportunities in the next. The framework is presented in planning order, not in order of difficulty or cost.
1. Room Readiness

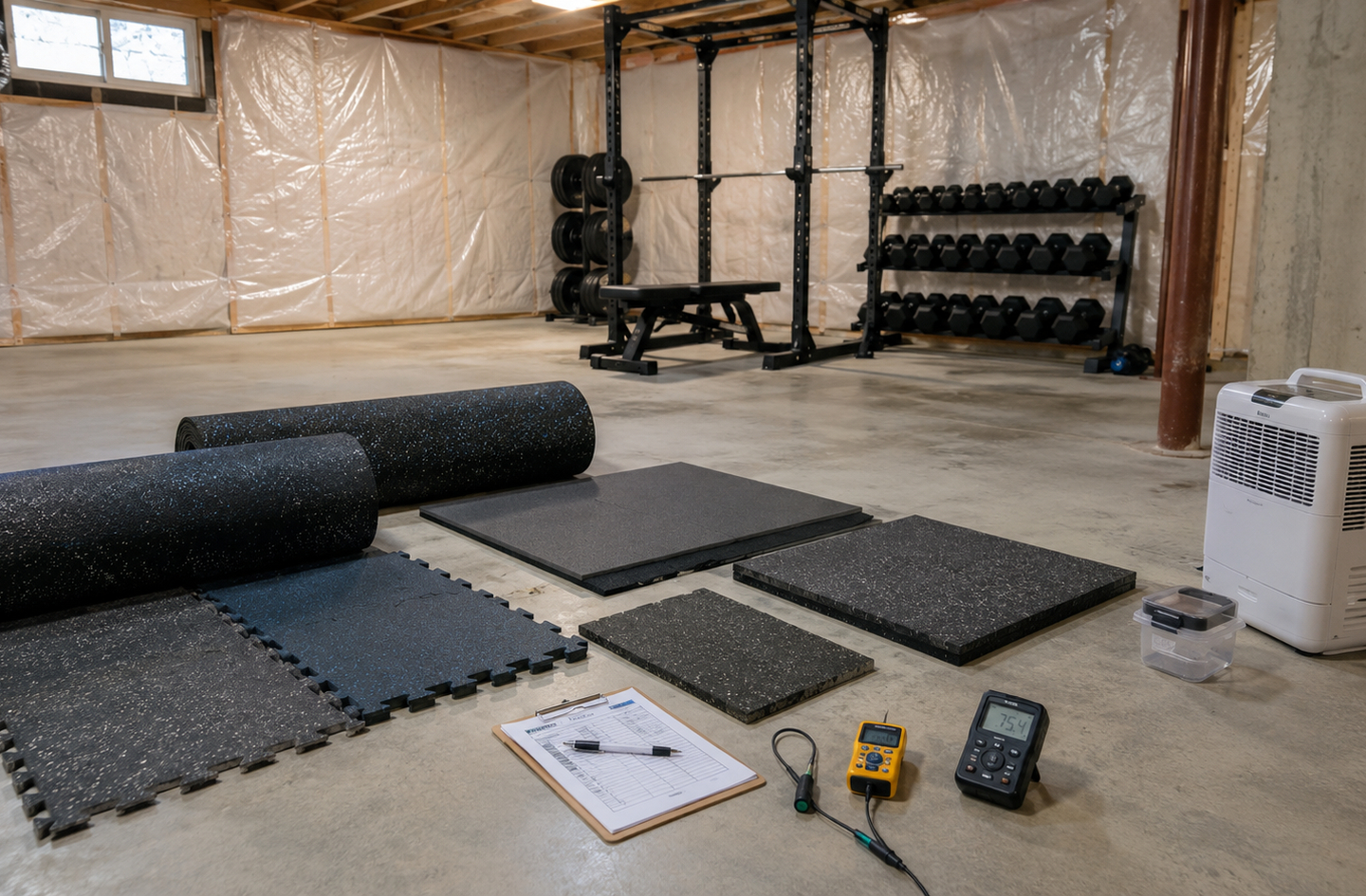

Room readiness is the foundation of the entire plan. This dimension covers identifying active and seasonal moisture sources, testing for radon, evaluating flood risk relative to sump pits and floor drains, and determining what condition an unfinished basement must reach before gym finishes or equipment make sense. A basement with active water seepage along a foundation wall is not ready for flooring, storage, or fixed equipment. A basement with radon above 4 pCi/L is not ready for regular workouts until mitigation is complete. These assessments happen before any planning decisions downstream, because their results determine what the remaining four dimensions can and cannot include.
Deeper read: basement moisture testing before you build.
Deeper read: radon testing before regular workouts.
Deeper read: planning around flood risk, sump pumps, and water entry.
Deeper read: dehumidifier planning and equipment protection.
Deeper read: what to fix in an unfinished basement before training.
2. Space and Clearance
Clearance is not a preference; it is a measurement. This dimension addresses the ceiling height calculation at each training zone (finished floor to lowest obstruction, not to the ceiling deck), headroom requirements for specific lifts and equipment formats, small-footprint layout decisions, and the egress paths that cannot be blocked by equipment. Basements with open joists versus dropped ceilings have meaningfully different headroom profiles, and the calculation changes again when a flooring platform, a pull-up bar, or a dip station is introduced. Egress window locations, stair configurations, and the basement’s relationship to utility equipment create fixed zones that constrain where training areas, storage, and large pieces can be positioned.
Deeper read: measuring ceiling height for racks, pull-ups, and overhead lifts.
Deeper read: equipment and exercises for low-ceiling basement gyms.
Deeper read: open joists versus finished ceilings for usable headroom.
Deeper read: fitting strength, cardio, storage, and movement in a small basement.
Deeper read: planning a layout around beams, columns, ducts, and utilities.
Deeper read: keeping egress and emergency paths clear.
3. Infrastructure
Infrastructure decisions in a basement gym span four systems: electrical, ventilation, lighting, and acoustic control. Electrical planning matters because cardio machines, dehumidifiers, fans, and lighting all draw current simultaneously. Understanding what the existing circuits can carry, and whether dedicated circuits are warranted, happens before equipment is selected. Ventilation planning covers how stale air is removed, how fresh air reaches the training zone, how the gym interacts with the home’s HVAC, and how dehumidification fits into the airflow path. Lighting in a below-grade room with low ceilings requires low-profile fixtures placed to avoid glare at the rack and mirror positions. Sound transmission to the floors above follows different rules from airborne sound and benefits from early planning during the ceiling and floor phases rather than after the room is finished.
Deeper read: electrical outlets, circuits, and equipment loads.
Deeper read: HVAC, airflow, and fresh air planning.
Deeper read: bright, low-profile lighting for low ceilings.
Deeper read: reducing weight noise and cardio vibration.
4. Equipment and Durability
Equipment selection in a basement gym follows from the room’s physical constraints, not from a general wish list. Ceiling height determines maximum rack height and pull-up bar format. Stair width, landing dimensions, and door clearances determine which equipment can reach the space at all; a machine that cannot fit through the stairwell turn does not belong in the order. Below-grade humidity and concrete floor contact increase corrosion risk on exposed steel, so maintenance planning and surface protection become part of the equipment decision. Storage planning for plates, dumbbells, bars, and accessories also belongs in this dimension: where storage goes determines whether the training path stays clear or gets blocked during resets.
Deeper read: choosing equipment by basement constraints.
Deeper read: measuring the delivery path before ordering large gym equipment.
Deeper read: protecting barbells, racks, and machines from rust.
Deeper read: storage that preserves floor space and headroom.
Deeper read: mirror placement and mounting on concrete or masonry walls.
Deeper read: ceiling and joist mounting checks for pull-up bars and rings.
Deeper read: planning safe access around furnaces and water heaters.
5. Budget and Phasing
Budget decisions in a basement gym are sequencing decisions as much as spending decisions. Water control, safe power, basic lighting, and floor protection belong in the first phase regardless of total budget. Cosmetic finishes (painted walls, ceiling tile, trim) belong later. The question is not simply how much to spend; it is what order the spending protects the investment that follows. Buying a rack before resolving a moisture problem means the rack may need to be moved when moisture work is done. Finishing a ceiling before the ventilation and dehumidification plan is settled can require reopening it. The phasing discipline applies to both DIY-friendly improvements and trade work, because some items (electrical, structural framing, HVAC tie-ins) warrant a licensed professional regardless of budget level.
Deeper read: building a phased budget for a basement gym.
How to Sequence Your Planning Decisions
The single most important principle in basement gym planning is that each layer of decisions creates constraints for the next. Decisions made out of order force rework. The following sequence reflects the dependencies between each planning layer.
- Test the room for moisture sources and radon. Walk the perimeter after rain and check for seepage, efflorescence (white mineral deposits on walls), or standing water at low points. A basic radon test kit, left in place for the manufacturer’s specified dwell period and sent to a certified lab, gives actionable data before any other investment is made. These findings affect every other decision.
- Measure ceiling height at each planned training zone. The number to use is from finished floor (including any platform or flooring layer) to the lowest obstruction in that zone: a beam, a duct, a light fixture, a joist. Not the ceiling deck. Not the tallest point in the room. The lowest point where the lift will actually occur. This number determines which equipment formats fit.
- Map egress paths, utility clearances, and structural obstacles. Identify the primary exit path from the training area, the required clearances around the furnace, water heater, and electrical panel, and any fixed elements (posts, beams, soffits) that anchor the room geometry. These constraints define the zones where equipment cannot go before a single piece is selected.
- Assess electrical capacity. Count what is already drawing on each circuit in the basement. Determine where panels, subpanels, and existing circuits are located. Understand what a dehumidifier, a treadmill, and lighting would add simultaneously. Licensed electrical work is often needed to add dedicated circuits; knowing this early keeps it in the project timeline rather than as a surprise after equipment arrives.
- Plan ventilation and ceiling treatment together. The HVAC supply and return paths, dehumidifier exhaust, and any supplemental fan placement affect whether the ceiling stays open (exposed joists) or gets finished, and where fixtures land. Deciding on ceiling treatment before this plan is settled is a common source of reopened ceilings.
- Select equipment based on what the room supports. Ceiling height, egress clearances, stair dimensions, humidity exposure, and available circuits filter the options. Equipment that does not pass those filters does not belong in the initial order.
This sequence applies to both weekend DIY builds and multi-phase renovations. The constraints are the same; only the timeline changes.
Compare All Basement Gym Scenarios
Most basements fall into one of five planning profiles based on their baseline condition. Identifying the right profile determines which dimensions of the framework demand immediate attention and which are secondary.
| Criteria | Standard Finished | Low Ceiling (under 8 ft) | Moisture-Prone | Small Footprint | Unfinished Starting Point |
|---|---|---|---|---|---|
| Primary planning constraint | Equipment selection and layout | Ceiling clearance at every training zone | Water source identification and control | Multi-use zone design and compact storage | Moisture assessment and sequential build-out |
| Overhead lift viability | Often viable with standard equipment | Requires measurement; substitutions likely needed | Depends on ceiling height, not moisture | Depends on ceiling height | Measure before finishing; headroom may improve with joist exposure |
| Dehumidification need | Likely; verify RH readings in summer | Same as standard | High priority; continuous drainage required | Same as standard | Essential before equipment or finishes |
| Infrastructure complexity | Low to moderate | Low to moderate | Moderate (drainage and dehumidification) | Low to moderate | High (all systems may need additions) |
| Timeline before first workout | Days to weeks | Days to weeks once equipment is selected | Weeks to months (moisture work first) | Days to weeks | Weeks to months depending on scope |
Choose “Standard Finished” planning if: the ceiling is at or above 8 feet finished, there is no active moisture or flooding history, and the space already has adequate lighting and circuit access.
Choose “Low Ceiling” planning if: any training zone measures below 8 feet from finished floor to the lowest obstruction, because overhead and pull-up clearance calculations become the deciding factor in equipment selection.
Choose “Moisture-Prone” planning if: there is a sump pump that activates regularly, visible water staining on walls or floor, or a history of seepage after heavy rain.
Choose “Small Footprint” planning if: usable floor area is under approximately 200 square feet, because multi-use zone design and clearance preservation become the dominant constraint rather than equipment preference.
Choose “Unfinished Starting Point” planning if: concrete walls are exposed, no ceiling finish exists, and the electrical and lighting situation needs to be established before any training setup begins.
Common Mistakes
Mistake 1: Ordering Equipment Before Measuring Stair and Hallway Access
Why it is a mistake: Large gym equipment ships partially assembled and in large cartons. The stair width, landing dimensions, door clearances, and the final-room access point all need to accommodate the largest packaged dimension, not the assembled footprint.
What to do instead: Measure the stairwell width, the tightest turn on the landing, the door opening width, and the path from the foot of the stairs to the planned equipment location. Compare those measurements against the manufacturer’s packaged dimensions before placing an order.
Read more: measuring the delivery path before ordering large gym equipment.
Mistake 2: Measuring Ceiling Height to the Deck Instead of to the Lowest Obstruction
Why it is a mistake: Joists, beams, HVAC ducts, conduit, and light fixtures all drop below the structural ceiling deck. A measurement to the open deck overstates the usable headroom, which leads to equipment that technically fits in the room but still creates dangerous clearance issues at the bar path or pull-up position.
What to do instead: Measure from the finished floor (after any flooring layer) to the lowest fixed obstruction directly above the planned training zone. Treat that number as the operative ceiling for equipment selection.
Read more: measuring ceiling height for racks, pull-ups, and overhead lifts.
Mistake 3: Finishing the Ceiling Before Settling the Ventilation and Dehumidification Plan
Why it is a mistake: HVAC supply and return paths, dehumidifier exhaust routing, and supplemental fan placement all pass through or past the ceiling plane. Finishing the ceiling before those paths are decided commonly results in reopened drywall or soffits to accommodate systems that were not mapped in advance.
What to do instead: Identify where supply air enters the space, where stale air exits, where the dehumidifier will drain, and where ceiling-mounted fans or lights will sit. Commit those positions before choosing a ceiling treatment.
Read more: HVAC, airflow, and fresh air planning for a basement gym.
Mistake 4: Placing Fixed Equipment Over or Blocking Floor Drains and Sump Pits
Why it is a mistake: Floor drains and sump pits must remain accessible for service and for water management after any seepage event. A power rack, a cable machine, or a rubber mat platform placed directly over a drain blocks access when it matters most and can interfere with proper drainage.
What to do instead: Map all floor drains, sump pit covers, and known low points in the floor before finalizing any equipment footprint. Keep those locations in an exclusion zone for fixed or very heavy equipment.
Read more: planning around sump pumps, drains, and water entry.
Mistake 5: Skipping Radon Testing Because the Basement Feels Fine
Why it is a mistake: Radon is odorless and invisible. Elevated levels produce no immediate physical sensation and are not detectable by any means other than a test. A basement that has been used for storage or occasional activity is different from one that will be occupied for daily workouts over years. Cumulative exposure is the risk factor, and the EPA recommends testing any below-grade space used regularly.
What to do instead: Test before converting the basement into a gym, following EPA and state guidelines. If results are at or above the action level, address mitigation before workouts begin.
Read more: radon testing before regular basement workouts.
Best Approach by Use Case
Best for an Unfinished Starting Point
An unfinished basement requires a clear sequence before any training setup makes sense: address active moisture, establish basic lighting and safe power, apply floor protection, and confirm egress. Gym equipment can follow once the room is stable. Skipping the foundation work to get to the rack sooner typically means moving the rack when foundation work catches up.
Deeper read: what to fix in an unfinished basement before training.
Best for Low Ceiling Constraints
A ceiling under 8 feet requires equipment selection to start from the ceiling measurement, not from a general preference. Short racks, squat stands, and compact cable systems fit where full-size power racks do not. Exercise substitutions (trap bar deadlifts, seated overhead press) replace movements that need more vertical clearance. The room decides the training approach.
Deeper read: equipment and exercises for low-ceiling basement gyms.
Best for Moisture-Prone Basements
A basement with known flooding history, regular sump pump activity, or seasonal seepage requires water mapping before equipment placement. Floor drains, sump pits, and seepage paths define the zones where equipment needs to be movable or elevated. A moisture-control plan (not just a dehumidifier) should be in place before any significant investment in finishes or fixed equipment.
Deeper read: planning around flood risk, sump pumps, and water entry.
Best for Small-Footprint Basements
A compact basement gym succeeds by prioritizing training goals over equipment diversity, using vertical and wall-mounted storage, and preserving a clear movement path through the space. Zone overlap (strength area doubling as mobility area) is common. The layout decision comes before any equipment decision, because the zone map determines what fits and what does not.
Deeper read: fitting strength, cardio, and storage in a small basement.
Best for Budget-Phased Builds
A phased build on a limited budget sequences infrastructure before equipment and equipment before cosmetics. Water control, a dedicated circuit where needed, and adequate lighting are first-phase investments because they protect everything that follows. Painted block walls and bare bulbs are acceptable training conditions; a rack placed in a moisture problem is not.
Deeper read: building a phased budget for a basement gym.
Frequently Asked Questions
How much ceiling height does a basement gym actually need?
The IRC requires a minimum 7-foot (2,134 mm) ceiling height in habitable rooms.2 For a basement gym, that number is a floor, not a target. A standard power rack with a pull-up bar needs roughly 9 feet of clearance for a 6-foot lifter to reach lockout without hitting an overhead obstacle. Measure from finished floor to the lowest obstruction in the training zone, not to the ceiling deck.
How do I control humidity in a basement gym?
ASHRAE Standard 62.1 recommends keeping occupied indoor spaces at 30-60% relative humidity.3 Most basement gyms need a dehumidifier sized for the space, positioned for continuous drainage to a floor drain or condensate pump rather than a manual-empty bucket. Monitor humidity with a hygrometer during summer months, since below-grade spaces regularly exceed 60% without active control.
Should I test for radon before setting up a basement gym?
Yes. Radon is odorless and invisible, and approximately 1 in 15 US homes tests at or above the EPA action level of 4 pCi/L.1 A basement used for daily training accumulates significantly more cumulative exposure than one used for occasional storage. Test using a short-term kit (48-96 hours) from a certified lab and follow EPA and state guidance. Mitigation should be completed before regular workouts begin if results are elevated.
What equipment works best in a low-ceiling basement?
Squat stands and half racks clear lower ceilings than full-size power racks, since they omit the overhead pull-up bar and reduce the overall frame height. Compact cable machines, trap bars, low-profile cardio equipment (recumbent bikes, rowing machines), and resistance bands all work in spaces that cannot support a standing overhead press or a kipping pull-up. The ceiling measurement at the specific training zone determines which formats fit.
How do I prevent rust on gym equipment in a basement?
Keeping relative humidity below 60%4 is the most effective long-term protection. Beyond humidity control, bare steel barbells benefit from a light coat of 3-in-1 oil after each session. Keep equipment off direct concrete contact using rubber mats or platforms. Wipe down equipment after workouts; sweat contains salts that accelerate surface corrosion faster than ambient humidity alone.
What This Hub Does Not Cover
- Certified structural engineering, load calculations, or stamped plans for basement modifications. A licensed structural engineer evaluates specific cases; this hub does not substitute for that.
- Electrical specification for dedicated circuits or panel upgrades. A licensed electrician determines what a specific basement can safely carry. The hub explains what questions to ask, not how to wire it.
- Professional waterproofing or drainage system design. This hub addresses planning around water risk; it does not replace a waterproofing contractor’s assessment of a specific foundation condition.
- Region-specific radon risk maps as substitutes for testing. Maps show probability, not measured levels. Only a test of the actual space gives actionable data.
References
- U.S. Environmental Protection Agency – “A Citizen’s Guide to Radon”: 4 pCi/L action level, 1 in 15 homes prevalence, and estimated 21,000 annual lung cancer deaths attributable to radon.
- International Code Council – 2021 International Residential Code (IRC), Section R305.1: minimum 7-foot (2,134 mm) ceiling height requirement for habitable rooms.
- ASHRAE – Standard 62.1, Ventilation for Acceptable Indoor Air Quality: 30-60% relative humidity recommendation for occupied indoor spaces.
- U.S. Environmental Protection Agency – “A Brief Guide to Mold, Moisture and Your Home”: relative humidity above 60% promotes mold growth on building materials.
- FEMA – “Homeowner’s Guide to Retrofitting (Third Edition)”: guidance on evaluating basement water risk and protection planning for below-grade spaces.
Next Read
Basement gym planning works as a sequence of constraints: the room’s moisture, clearance, and infrastructure conditions determine which equipment fits, which layout is possible, and which finishes make sense. Starting with the room is not a philosophical preference; it is what prevents the most common and most costly rework. Walls before racks, airflow before cardio gear, lighting before mirrors, clearance before the first heavy set.
Start with the planning sequence to build your basement gym in the right order.
